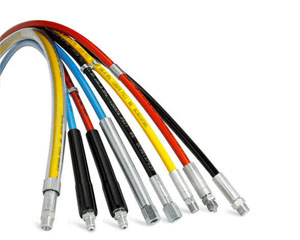

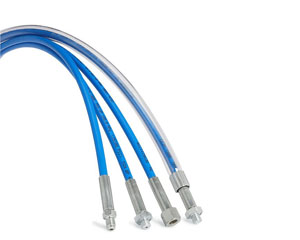

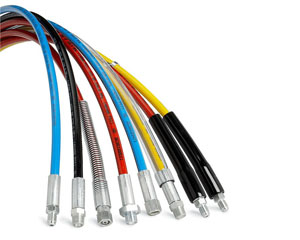

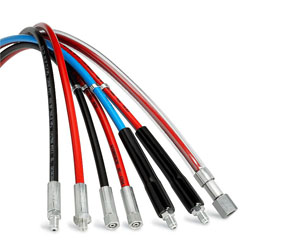

Ultra High Pressure Hose is a comprehensive range of fully engineered polymer hoses featuring combination spiral layered steel reinforcement. Each hose family has been carefully developed with bespoke insert and ferrule designs to maintain the highest integrity of both the components and the final assembly.
Ultra High Pressure Hose Application in the industrual:
Waterjet cutting, cleaning of tubes and heat exchangers, removing paint and dirt from reservoirs, containers, ships, industrial cleaning, checking the pressure of injection in Diesel engines.
Ultra High Pressure Hose Application in the hydraulics:
Hydraulic tensioners, testing devices
Ultra High Pressure Hose Advantages:
High compatibility of multispiral thermoplastic hoses with fittings and ferrules of our own production. High resistance to chemicals and abrasion
Ultra High Pressure Hose SSB201
INNER TUBE: Polyamide
REINFORCEMENT: Two spiral layers and one layer of high tensile steel wire braiding
OUT COVER: Pin pricked anti-abrasion polyurethane
Ultra High Pressure Hose SSB401
INNER TUBE: Polyamide
REINFORCEMENT: Four spiral layers and two layers of high tensile steel wire braiding
OUT COVER: Pin pricked anti-abrasion polyurethane
Ultra High Pressure Hose SS200
INNER TUBE: Polyoxymenthylene
REINFORCEMENT: Two spiral layers of high tensile steel wire out
COVER: Polyamide
Ultra High Pressure Hose SS400
INNER TUBE: DN 3-8: Polyoxymenthylene; DN 10-25: Polyamide fibers
REINFORCEMENT: Four spiral layers of high tensile steel wires out
COVER: Polyamide
