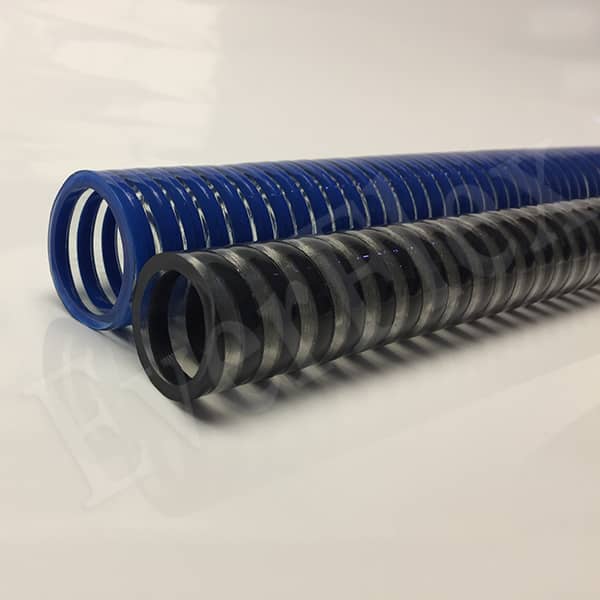

Wall: High quality plasticized PVC
Reinforcement: Rigid PVC helix
Feature
1. Anti-abrasion,anti-corrosion,anti-aging
2. Super flexible,small bending radius,light weight
3. Smooth tube and excellent water supply and draining efficiency
4. High abrasion resistance and easy to transfer power
Application
Very ideally for conveying water,oil,and powder, abrasive mineral sands,gravel ,cement,chips,shavings,construction,agriculture and industrial service applications.

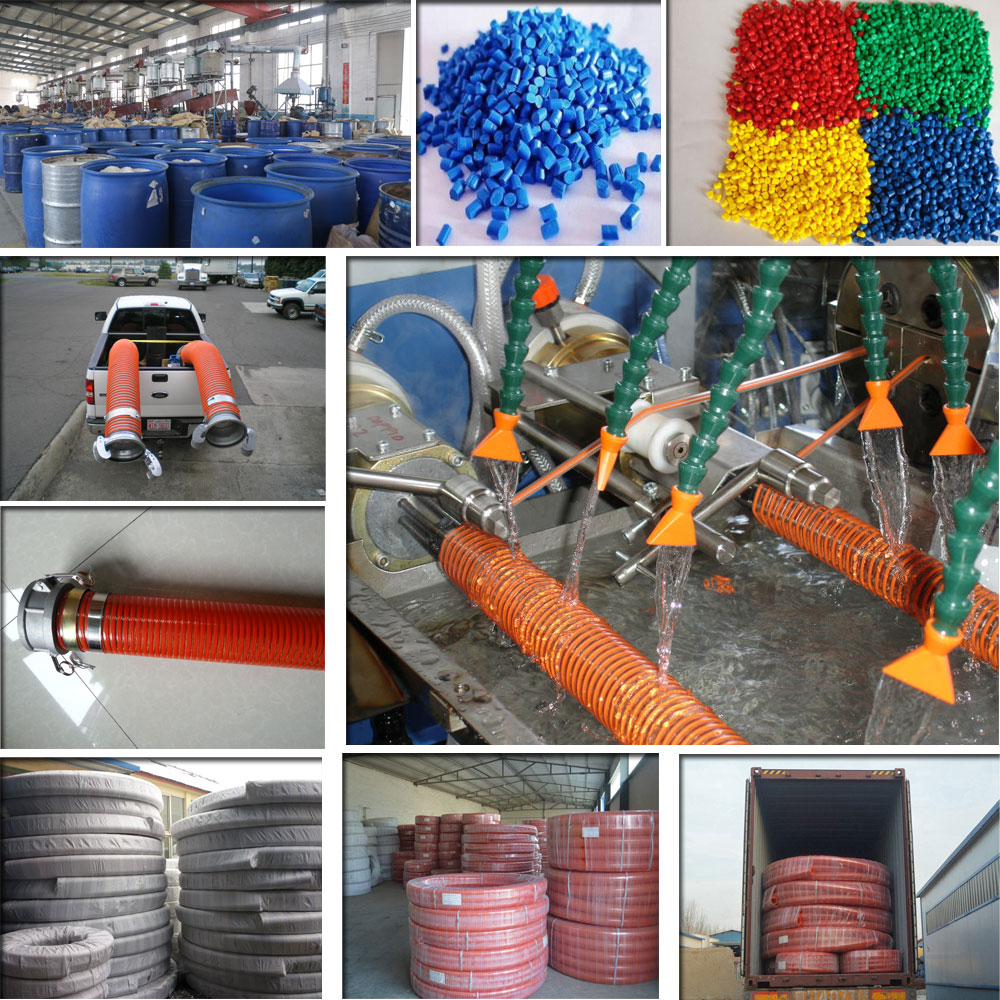

Workshop:
100% virgin PVC materials,Non-toxic,Non smell.
Our factory introduce advanced technology and equipment to make the bets quality PVC Suction Hose. Before mass production,we test each raw material.After production,we test each hose to guarantee 100% qualification.
Packing:
In general, the packing will use woven bag and plastic film.
Special packing as customer request.Multiple modes of transportation available,
We can choose the most economical way for you.
Market & Exports: Our product has exported to over 30 countries,
including the United States, Britain, Brazil, Russia and so on.
Trade shows: we participate in overseas exhibitions every year.
Heavy Duty Suction / Discharge Hose
| Nominal Diametro | Internal Diametro | External Diametro | W.P. | W.P. | B.P. | B.P. | Vacuum | Bend Radius | Lenght |
|---|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | kgf/cm2 | psi | kgf/cm2 | psi | mm Hg | mm | m |
| 2" | 50,8 | 66,0 | 7,0 | 100 | 17,5 | 249 | 711 | 410 | 30 |
| 3" | 76,2 | 93,9 | 7,0 | 100 | 17,5 | 249 | 711 | 640 | 30 |
| 4" | 101,6 | 121,4 | 5,2 | 75 | 13,0 | 185 | 711 | 720 | 30 |
| 5" | 127,0 | 153,4 | 4,9 | 70 | 12,3 | 174 | 711 | 915 | 30 |
| 6" | 152,4 | 182,1 | 4,9 | 70 | 12,3 | 174 | 711 | 1.04 | 30 |
PVC Suction Hose
| NOMINAL | INTERNAL | EXTERNAL | VACUUM | BEND RADIUS | LENGTH |
|---|---|---|---|---|---|
| DIAMETER | DIAMETER | DIAMETER | Minimum Working | ||
| inches | mm | mm | mm Hg | mm | m |
| 1" | 25,0 | 29,5 | 550 | 60 | 25 / 50 |
| 1.1/4" | 31,5 | 36,7 | 550 | 70 | 25 / 50 |
| 1.1/2" | 38,0 | 44,0 | 550 | 90 | 25 / 50 |
| 2" | 50,0 | 58,0 | 550 | 130 | 25 / 50 |
| 2.1/2" | 61,8 | 72,7 | 550 | 140 | 25 / 50 |
| 3" | 75,0 | 85,0 | 500 | 170 | 25 / 50 |
| 4" | 101,3 | 110,4 | 420 | 300 | 25 / 50 |
| 5" | 126,0 | 138,5 | 400 | 345 | 15 / 30 |
| 6" | 149,0 | 162,5 | 320 | 390 | 15 / 30 |
| 8" | 204,5 | 218,8 | 120 | 660 | 15 / 30 |
| 10" | 255,0 | 268,5 | 110 | 690 | 10 |
Transparent PVC Suction Hose
| NOMINAL | INTERNAL | EXTERNAL | WORK | BURST | VACUUM | BEND RADIUS | LENGTH | ||
|---|---|---|---|---|---|---|---|---|---|
| DIAMETER | DIAMETER | DIAMETER | PRESSURE | PRESSURE | Minimum Working | ||||
| inches | mm | mm | kgf/cm 2 | psi | kgf/cm 2 | psi | mm Hg | mm | m |
| 3/4" | 19,0 | 23,0 | 8,0 | 114 | 24 | 341 | 760 | 200 | 25 / 50 |
| 1" | 25,0 | 29,0 | 8,0 | 114 | 24 | 341 | 760 | 400 | 25 / 50 |
| 1.1/4" | 31,8 | 36,0 | 6,7 | 95 | 20 | 284 | 760 | 450 | 25 / 50 |
| 1.1/2" | 38,0 | 43,0 | 6,7 | 95 | 20 | 284 | 760 | 600 | 25 / 50 |
| 2" | 50,0 | 56,0 | 6,0 | 85 | 18 | 256 | 760 | 750 | 25 / 50 |
| 2.1/2" | 62,5 | 70,0 | 6,0 | 85 | 18 | 256 | 760 | 1000 | 25 / 50 |
