Characteristics

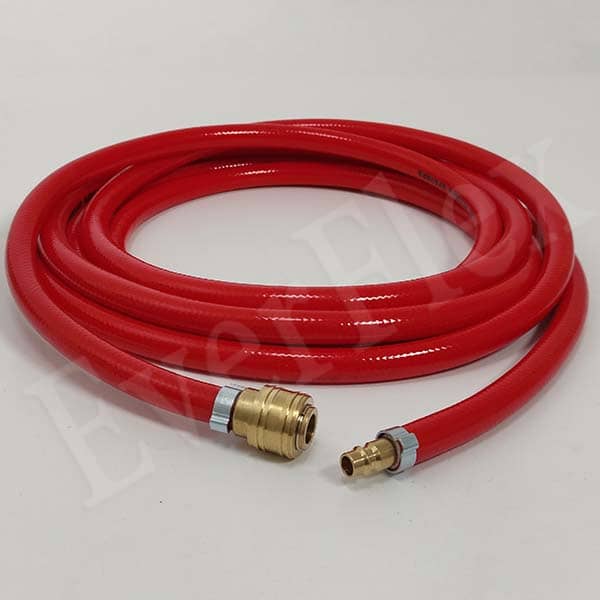

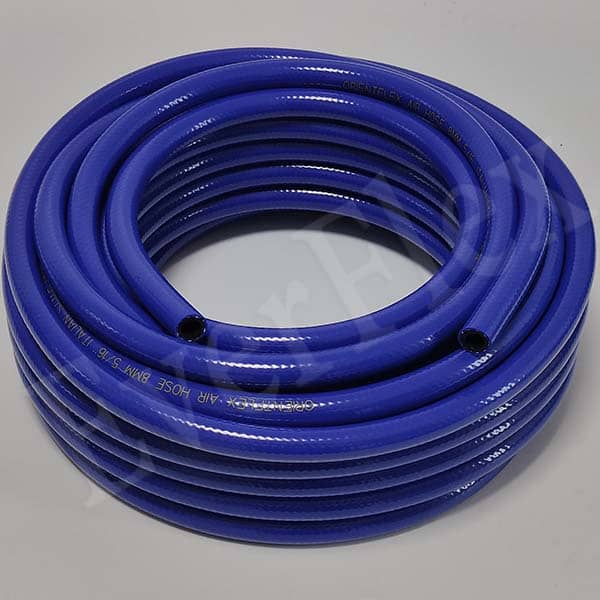

Being made of tough PVC materials and high tensile polyester reinforcement,PVC air hose can work under very high working pressure. It is light, flexible, durable, durable, anti-erosion, and explosion resistant.
Application
The PVC air hose is widely used in pneumatic tools, pneumatic washing apparatus, compressors, engine components, machine service and civil engineering equipment.
Temperature range: -10℃ to +65
Item Code I.D O.D W.P. W.P. B.P. B.P. Length Weight Volume inch mm mm psi bar psi bar m/roll kg/roll m3 PDA-06 1/4" 6.4 12 290 20 870 60 100 10.8 0.024 PDA-08 5/16" 8 14 290 20 870 60 100 13 0.026 PDA-10 3/8" 10 16 290 20 870 60 100 16.5 0.041 PDA-13 1/2" 13 20 290 20 870 60 50 12.2 0.029 PDA-16 5/8" 16 25 290 20 870 60 50 19.6 0.04 PDA-19 3/4" 19 28 290 20 870 60 50 24 0.056 PDA-25 1" 25 34 217.5 15 652.5 45 50 30 0.094 PDA-32 1-1/4" 32 44 217.5 15 652.5 45 50 48 0.166 PDA-38 1-1/2" 38 50 217.5 15 652.5 45 50 56 0.271 PDA-50 2" 50 64 145 10 435 30 50 84.6 0.375
Materia:
100% virgin PVC materials,Non-toxic,Non smell.
High tensile polyester yarn.Good quality material make light weight,good flexibility,easy handling.
Soft and flexible.Anti abrasion,Anti-corrosion,Anti-aging
Workshop:
Our factory introduce advanced technology and equipment to make the bets quality PVC Air Hose.
Packing:
In general, the packing will use woven bag and plastic film.
Special packing as customer request.Multiple modes of transportation available,
We can choose the most economical way for you.
Market & Exports: Our product has exported to over 30 countries,
including the United States, Britain, Brazil, Russia and so on.
Trade shows: we participate in overseas exhibitions every year.
1. 100% STRICT QUALITY CONTROL
2. 10YEARS ,DEDICATED TO PVC HOSE
3. STRONG TECHNOLOGY TEAM
4. STRONG SALES SERVICE TEAM
