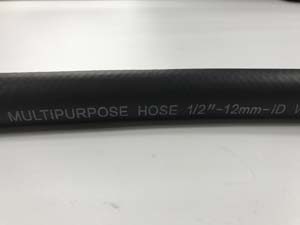

Multi purpose rubber hose Construction:
Tube: NR & SBR synthetic rubber, black color.
Reinforcement: High tensile synthetic yarn, single/double yarn braided or spiraled.
Cover: NR & SBR synthetic rubber, black and red in colors etc smooth or fabric surface.
Characteristics:
Abrasion resistant, weather resistant and ozone resistant. It is flexible, light in weight, anti-bending and less distortion.
Application:
Multi purpose for the transportation of high pressure air or water liquid, hydraulic oil, lubrication oil, fuel, oxygen, gas etc.
Temperature Range: -30℃ – +80℃
Standard Length:50m, 100m
| Item Code | Inside Diameter | Inside Diameter | Outside Diameter | Working Pressure | Working Pressure | Burst Pressure | Burst Pressure | Length | Measurement | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | mm | bar | psi | bar | psi | m | m 3 /roll | Kg/m | |
| MTP-05 | 3/16" | 5 | 12 | 20 | 300 | 60 | 900 | 100 | 410x410x100 | 0.15 |
| MTP-06 | 1/4" | 6 | 13 | 20 | 300 | 60 | 900 | 100 | 440x440x110 | 0.17 |
| MTP-08 | 5/16" | 8 | 15 | 20 | 300 | 60 | 900 | 100 | 490x490x120 | 0.22 |
| MTP-10 | 3/8" | 10 | 17 | 20 | 300 | 60 | 900 | 100 | 500x500x125 | 0.25 |
| MTP-13 | 1/2" | 13 | 21 | 20 | 300 | 60 | 900 | 50 | 480x480x135 | 0.46 |
| MTP-16 | 5/8" | 16 | 25 | 20 | 300 | 60 | 900 | 50 | 480x480x150 | 0.52 |
| MTP-19 | 3/4" | 19 | 29 | 20 | 300 | 60 | 900 | 50 | 520x520x185 | 0.64 |
| MTP-25 | 1" | 25 | 36 | 20 | 300 | 60 | 900 | 50 | 590x590x210 | 0.85 |
Material:Good quality materials make our rubber multipurpose hose steady performance.
Production:Advanced technology and equipment to make the best quality rubber hose.
Laboratory:
Our factory has strong quality control team, we set up advanced laboratory.
Before the mass production, we test each batch of raw material.
After the production, we test each hose to guarantee a 100% qualification.
Each hose tested at 3 times of working pressure.
Packaging: After finishing the rubber hose production, we will pack the hose.
In general, the packing will use woven bag and plastic film.
Special packing is available according to customers’ requirements.
Market & Exports: Our product has exported to over 30 countries,
including the United States, Britain, Brazil, Russia and so on.
Trade shows: we participate in overseas exhibitions every year.
