Double Jacket Fire Hose Structure:
Lining: PVC,PU, Rubber lining
Cover: Double Polyester jacket
Compared with single jacket fire hose, double jacket fire hose has 2 layers of polyester jacket cover the lining. The inner jacket is a material which provide a water-tight seal. Besides, it helps prevent kinking. While the outer layer is strong and wear resistant. Between the double layers, there is a lining which can be PVC, rubber or PU. It serves as barrier against water and prevent the hose from leaking. The lining can also resist heat, chemical and wear.
Double layer design makes the hose can bear higher pressure than the single layer hose. While the working pressure can be max 400 psi. In addition, the hose is light in weight and flexible. Thus it’s very easy to handle. The hose is also less likely to kink or twist. Thus you never have to worry about the constant water supply during the use.
The lining, especially PU lining can bear high pressure up to 90℃. Thus it’s perfect for fire fighting because it will not melt or catch fire.
Double Jacket Fire Hose Applications:
Such fire hose is the ideal choice for fire fighting. For structure, it can deliver water to the flames. Besides, it can create a barrier between the fire and the safe structure. In addition, it’s also suitable for wild fires. Because it can deliver large volume of water. Then, create a wet area to prevent the fire spread.
Double jacket fire hose is also a good choice for agriculture. Because it can deliver large volume of water for irrigation, especially in the dry area. Besides, such fire hose is a good material for emergency. For example, flood. With several large diameter hose, the drainage work will be easy and time saving.
In a word, it’s an ideal material for the places where need large volume of water.
Features :
● High pressure resistance
● High Abrasion resistance
● Low-temperature resistance
● Ozone resistance, Long service life.

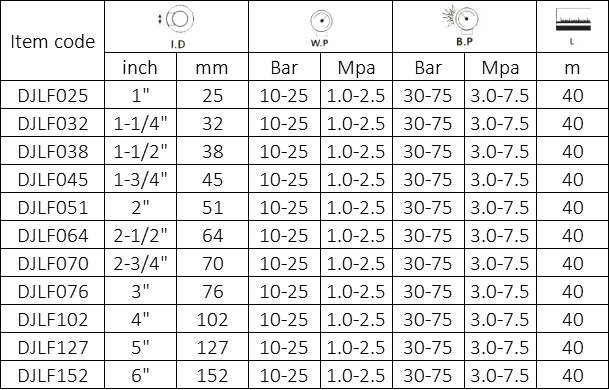

● Working pressure:10bar,13bar,16bar,20bar,25bar
