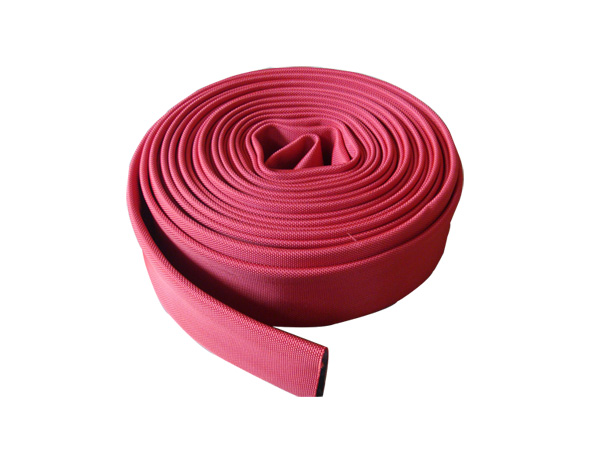

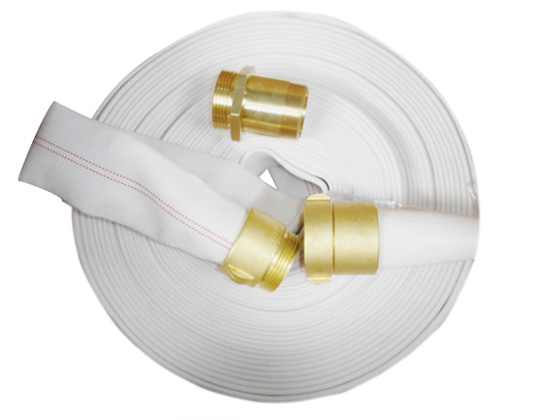

Rubber Lined Fire Hose Structure:
Lining: synthetic rubber
Cover: Polyester jacket
The jacket is made from high quality polyester. While the weft is high strength polyester filament. With a circular loom, the jacket is even and smooth.
Rubber Lined Fire Hose Application:
Rubber lined fire hose generally has 2 types. One is NBR lined layflat fire hose and the other one is EPDM lined fire hose.
Among the synthetic rubbers, NBR has the best oil resistance. Thus it’s the best material for the products which work with oils. For example, oil hose and dispenser hose. While with the NBR lining, the layflat hose can be a multi-functional hose.
Besides fire fighting, it’s ideal for many other usages. First, the oil line. Because of the great oil resistance, it can deliver oil products. What’s more, it resists corrosion and wear. Second, chemical industry. There will be large volume of wasted or corrosive water in chemical industry. Thus such corrosion resistant hose is a good choice for such hose discharge and transfer.
EPDM has the best weather and temperature resistance among the rubbers. Thus with the EPDM lining, layflat hose can work at outdoors without any aging. Therefore, it’s ideal for tough work conditions. As for the usages, it’s one of the best choices for fire fighting. Because it can bear high temp. Besides, it’s anti aging. Thus it has a longer service life. Besides, it’s ideal for agriculture. Because it can deliver water for irrigation from long distance.
No matter EPDM or NBR lining, the hose can both serve as attack fire hose and agriculture water hose. Besides, they are also ideal as forestry fire hose.
● Light weight, ozone resistant
● Abrasion resistant
● Low-temperature resistant
● Oil resistance, long service life

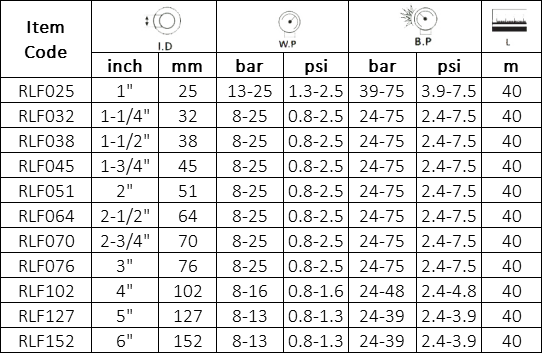

● Working pressure: 8bar,10bar, 13bar, 16bar, 20bar, 25bar
