Oil Cooler Hose

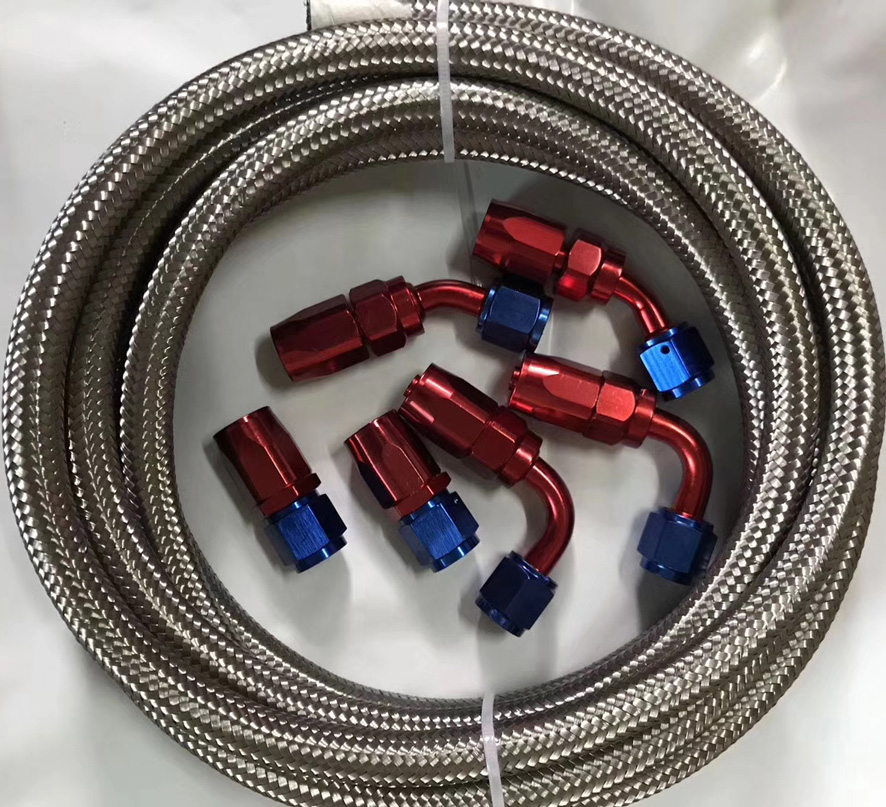

The oil cooler hose circulates oil between the oil cooler and engine. This helps keep the engine from overheating. If the oil cooler hose fails, you may experience oil leaking from the hose or a low oil warning light. The oil cooler hose consists of a synthetic rubber inner tube with a partial stainless steel reinforcement inner braid.There is a SS braid on the outside, making it exceptionally lightweight, flexible, and durable.
Transmission Oil Cooler Line plays an important part in the cooling system. Since the engine oil has thermal conductivity and continuously flows and circulates in the engine, the oil cooler cools the engine crankcase, clutch, valve components, etc. Even for a water-cooled engine, the only parts that can be cooled by water are the cylinder head and the cylinder wall, and the other parts are still cooled by the oil cooler.

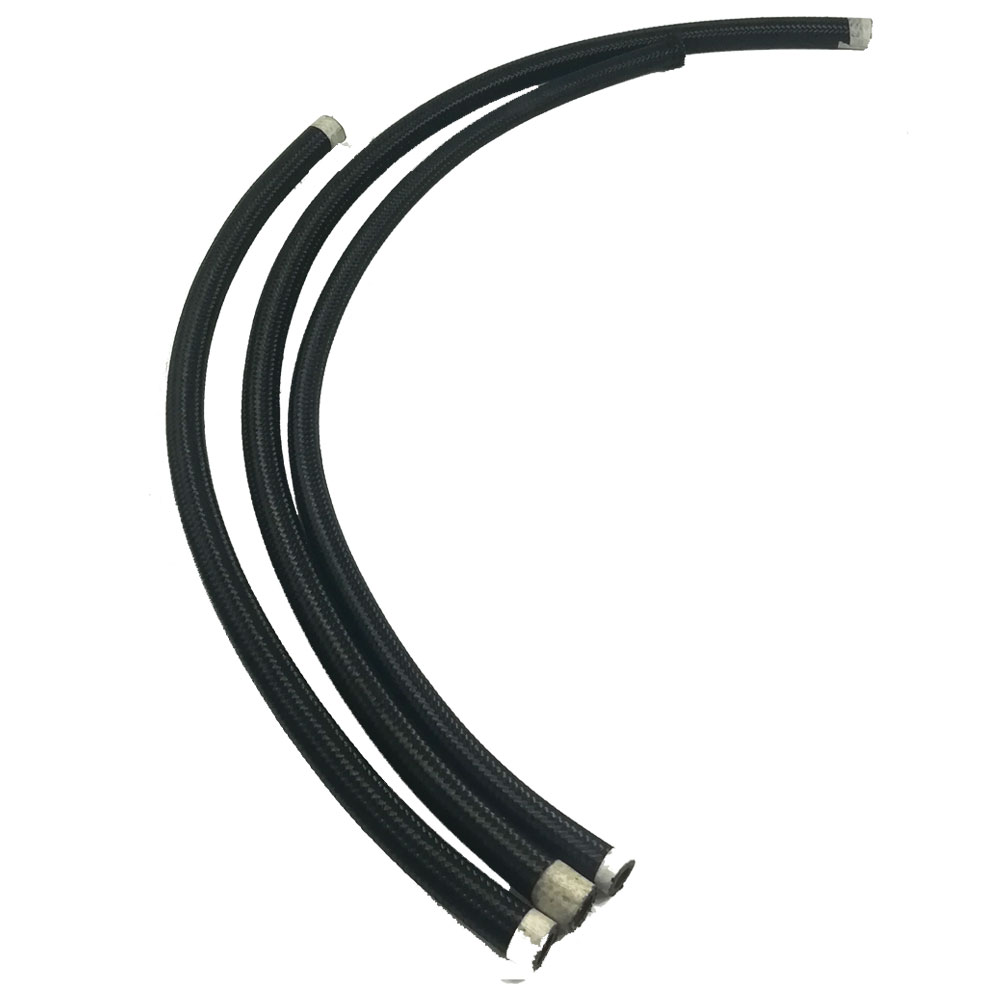

Oil Coolant Line Structure:
Tube: Black, oil resistant, synthetic rubber.
Reinforcement: braided, high-tensile steel wire. 1/4”, 5/16”, 3/8” and 1/2”
sizes are one braid;5/8”3/4”and 1” sizes are two braids.
Cover:Black, oil, abrasion and weather resistant, thin synthetic rubber.

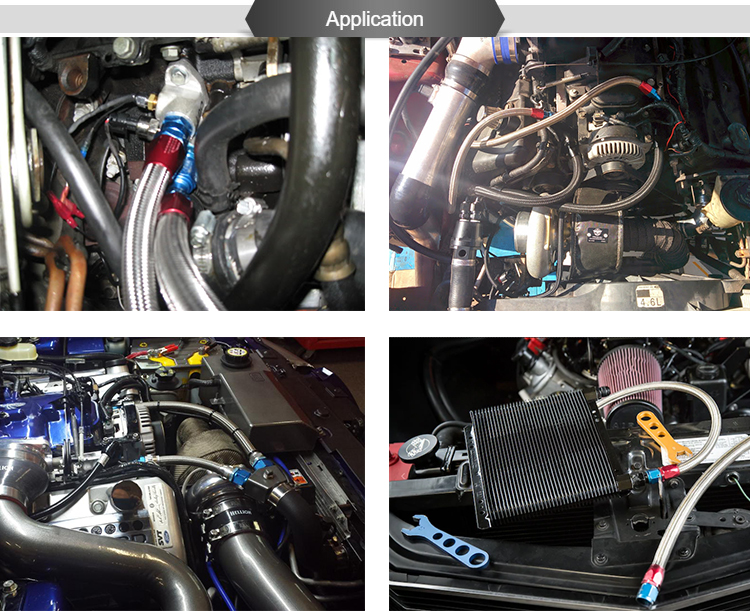

Engine Oil Cooler Lines Application:
Use with automatic transmission fluid and other lubricating oil systems
Cooler Line Transmission Features:
● Oil resistance
● Aging resistance
● Corrosion resistance
● Superior heat dissipation
● High and low temperature resistance
Temperature: -104 ℉ to + 302 ℉ (-40℃ + 150 ℃ )
