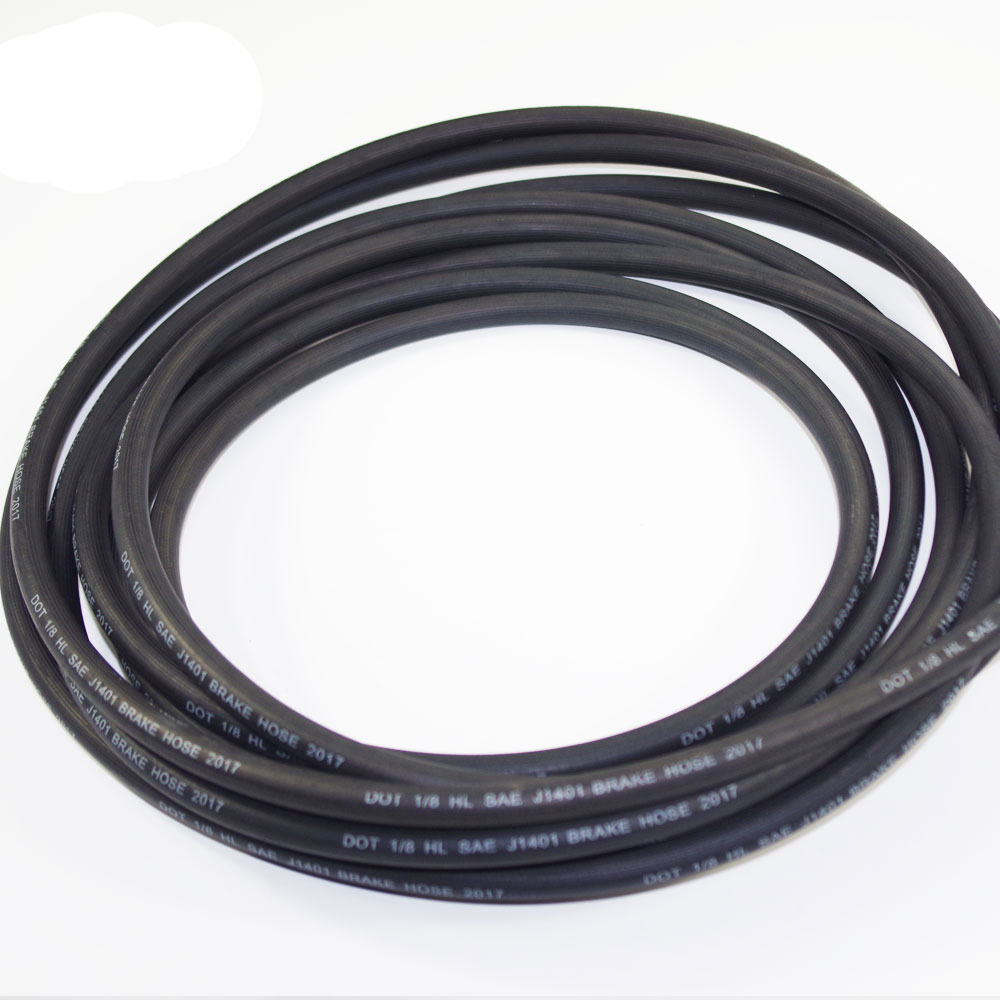

SAE J1401 rubber brake hose consists of five layers.(EPDM rubber inner tube, first reinforcement textile braid in PVA, adhesive coating,second reinforcement textile braid in PVA, outer protective cover of EPDM rubber). Our brake hoses conform to SAE J1401. Each brake hose assembly is pressure tested up to 1450 psi to ensure the safety.
Long length of rubber brake hose can be reached 50m,100m, 200m, etc. And our hose is durable, resilient and will last for a long time. Rubber brake line is widely using cars, for all vehicles with hydraulic brake and clutch system including drum brake and disc brake conversion etc.
Brake hose is the most important part in the whole brake system. Once there was any problem on the hose, it may cause serious accident. Thus the quality of rubber brake hose is really matter. Everflex is your reliable supplier for such hose. Our SAE J1401 hose adopts high quality raw material and accurate formula. Besides, there will be several test after the production. For example, pressure test. Before deliver to you, each hose will be inspected to gurantee the quality and property.

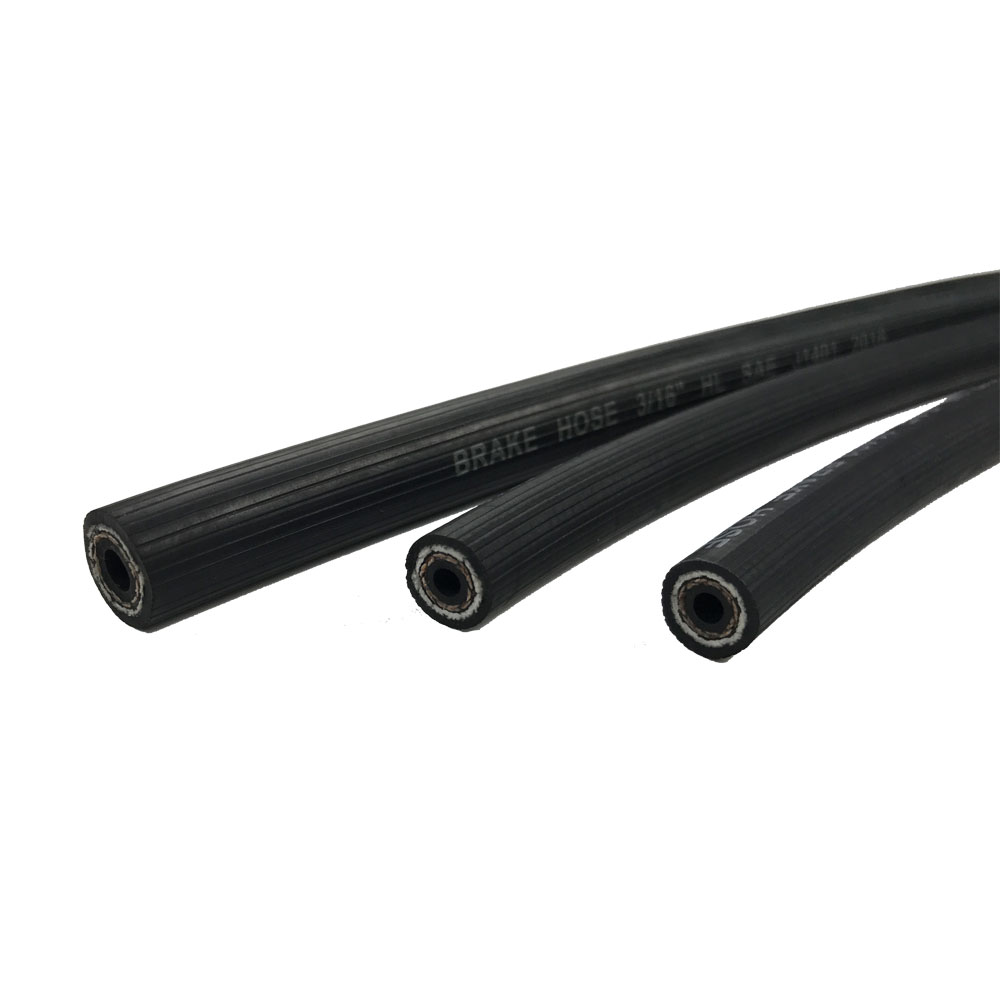

SAE J1401 Structure:
Tube: Special rubber formula with perfect brake fluid compatibility
Reinforcement: High tensile braided fiber.
Cover: Black, weather and aging resistant synthetic rubber”
Hydraulic brake hose act as a pressure transmission for automotive hydraulic brake system Used for Cars, motorcycles, light trucks and other Light Heavy-Duty vehicles for hydraulic brake system.
● High pressure resistance, lower volumetric expansion, flexibility, small bend radius,
● aging resistance, oil resistance, cold resistance and long lifespan
Temperature: -40℃ (-40 ℉ ) to +121℃ (+250 ℉ )[/vc_column_text]
