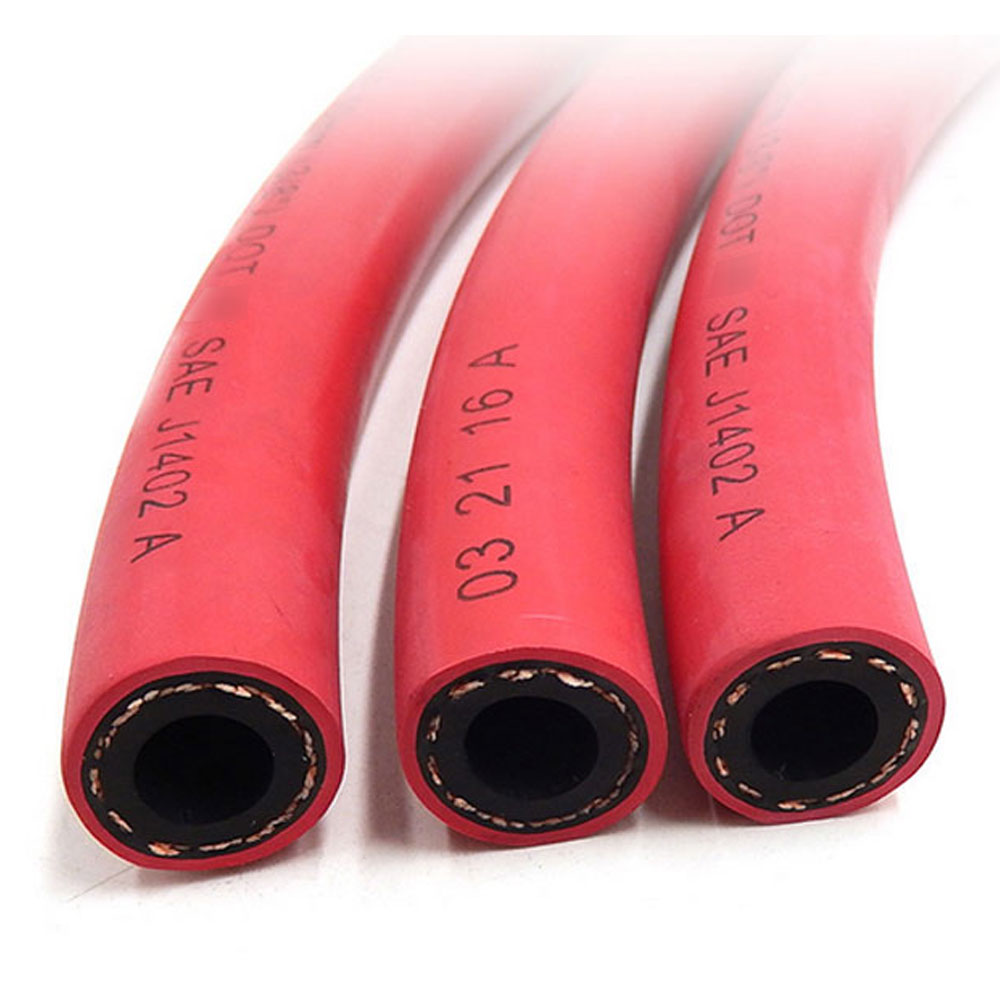

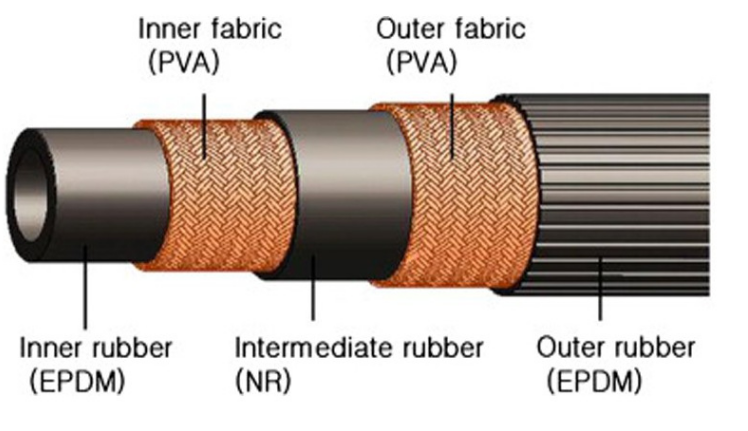

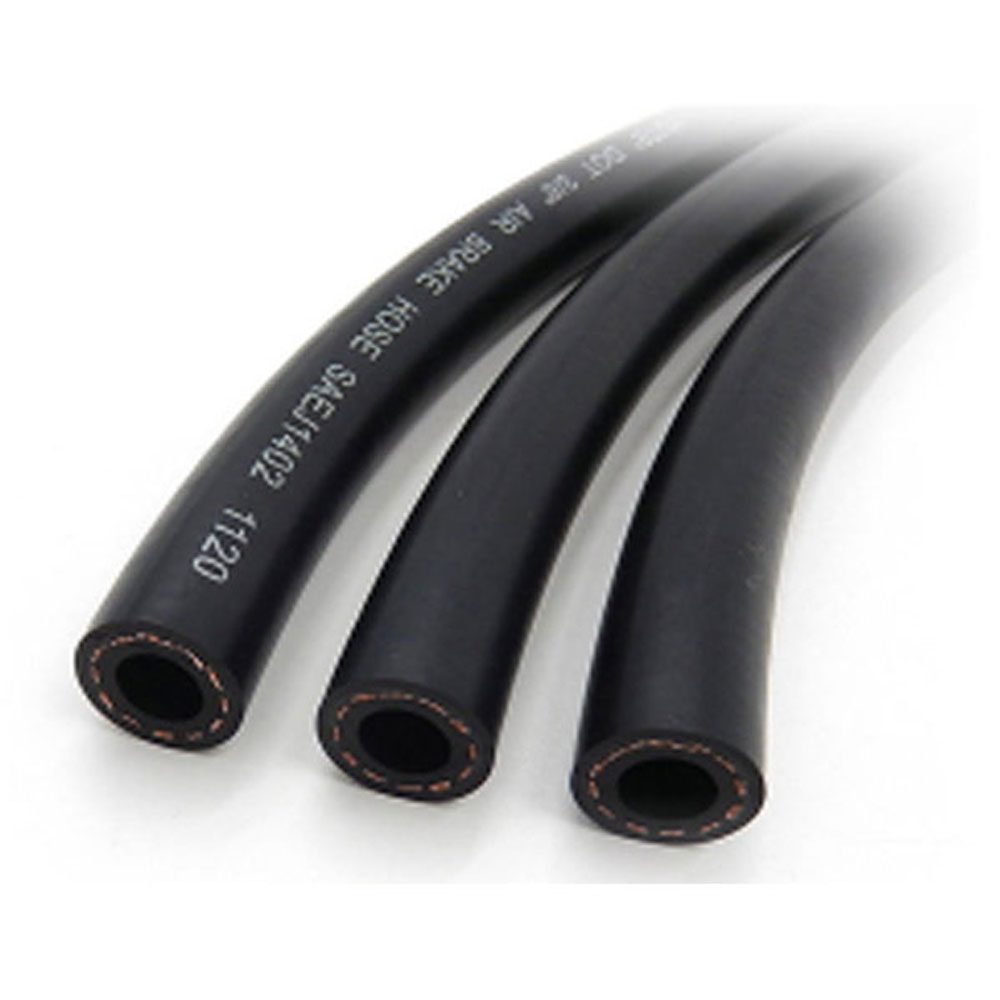

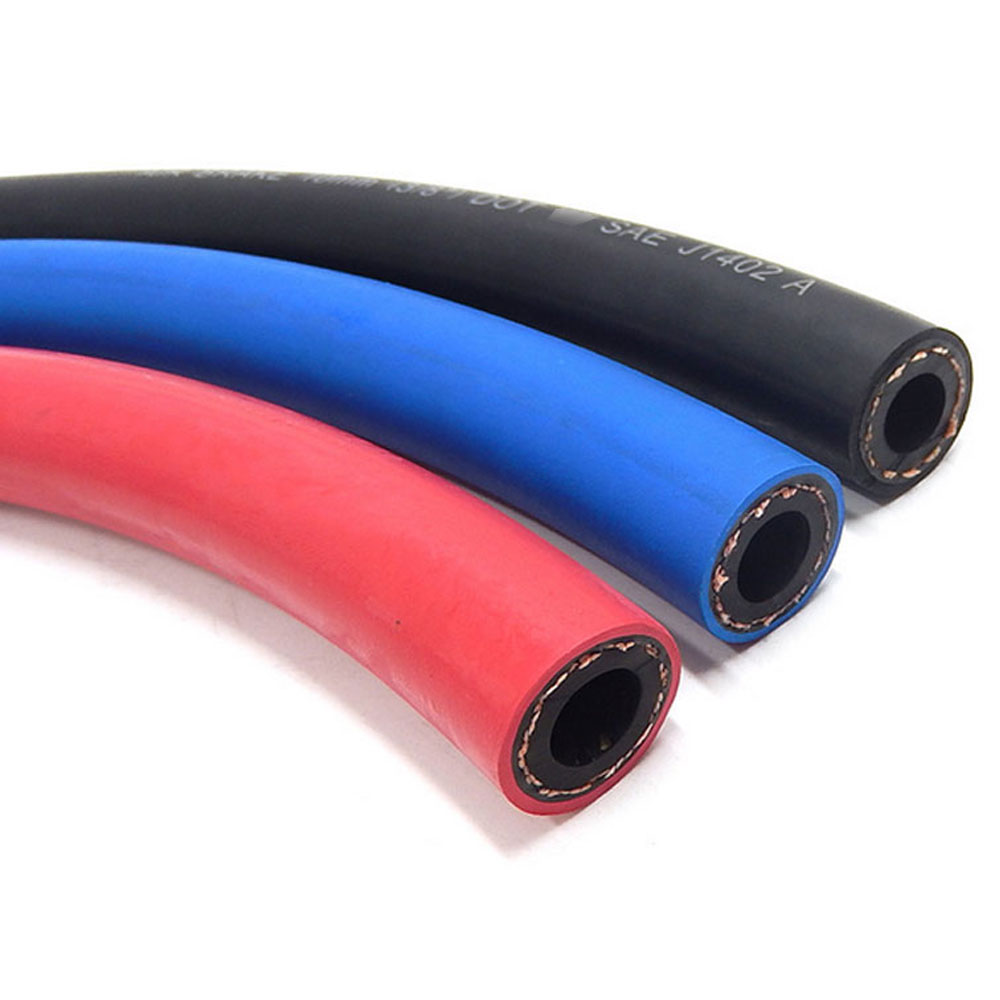

SAE J1402 brake hose consists of five layers.(EPDM rubber inner tube,first reinforcement textile braid in PVA, adhesive coating,second reinforcement textile braid in PVA,outer protective cover of EPDM rubber.)Our brake hoses conform to SAE J1402.Each brake hose assembly is pressure tested up to 1.1Mpa to ensure the safety.
Long length of rubber brake hose can be reached 50m,100m,200m .etc and our hose is durable,resilient,and will last for a long time. Widely using cars, for all vehicles with hydraulic brake and clutch system including drum brake and disc brake conversion etc.
Tube :excellent ozone resistant synthetic rubber( EPDM)
Reinforcement :high tensile braid of fibers
Cover:abrasion-and weather -resistant compounds(EPDM)

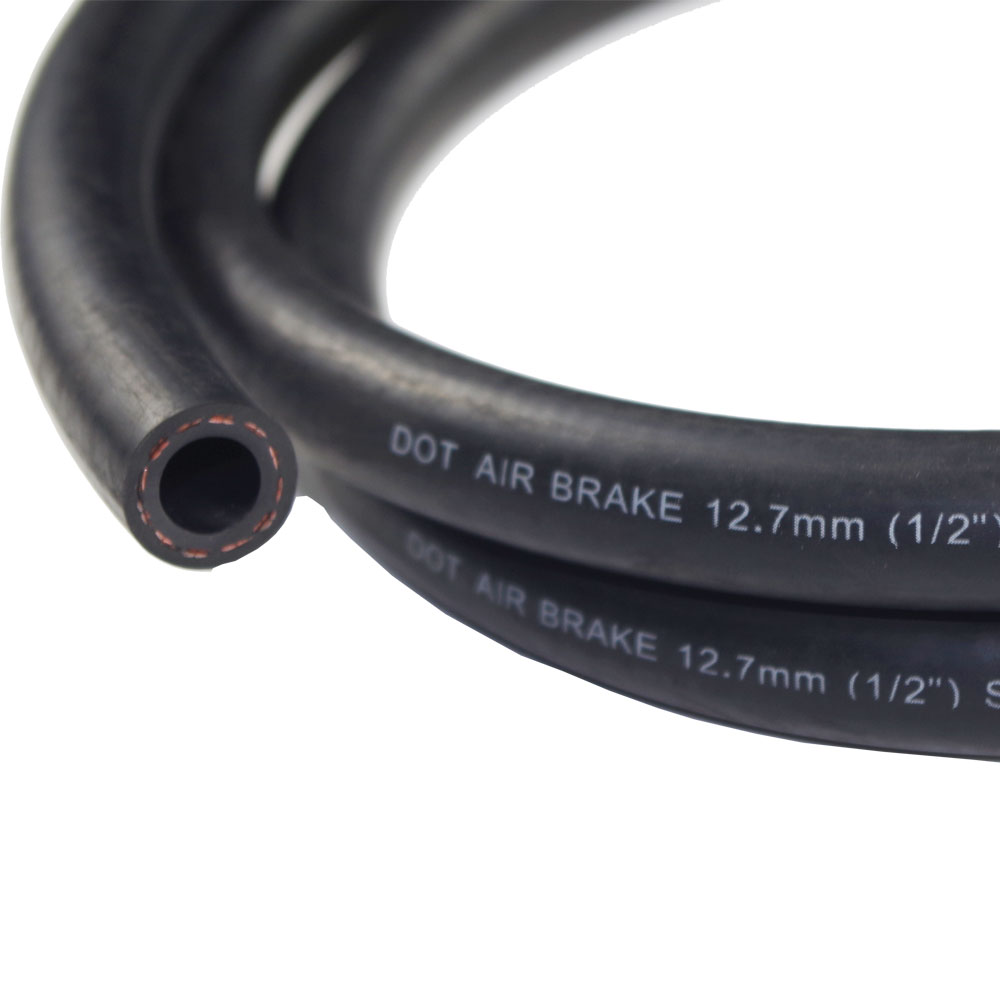

Designed for conveying air in brake systems of truck,lorry,tailer and other heavy duty vehicle
● High pressure resistance, lower volumetric expansion， flexibility, small bend radius
● aging resistance, oil resistance, cold resistance and long lifespan
Temperature: -40℃ (-140 ℉ ) to +121℃ (+250 ℉ )
