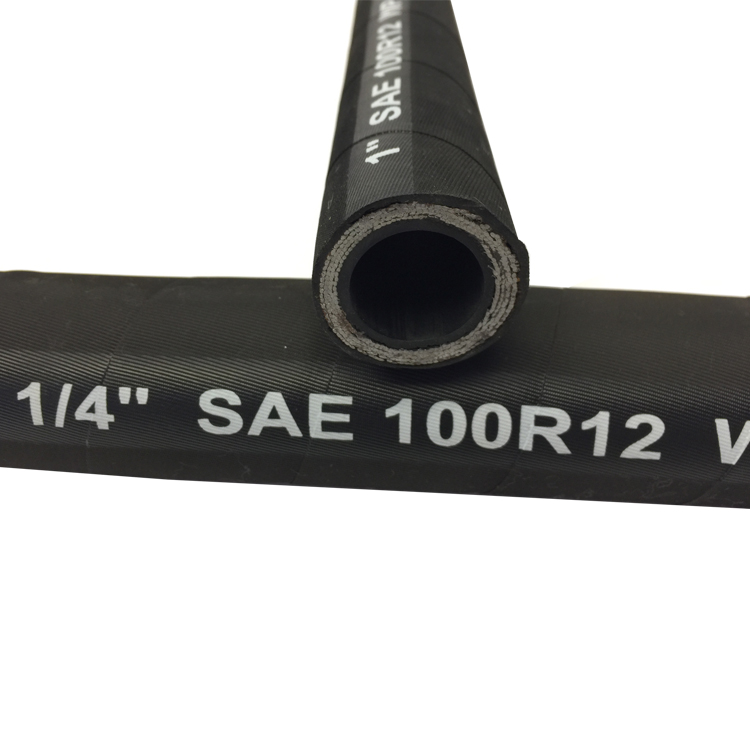

SAE 100 R10 R9 R12 steel wire spiraled hydraulic hose is suitable for delivering petroleum based hydraulic oils in the working temperature from -40 °C to +100 °C. It is composed of three parts: tube, reinforce and cover. The tube is made from high quality oil resistant synthetic rubber, making the hose widely used to deliver petroleum based hydraulic oils. The reinforce is four layers of high tensile and high strength spiraled steel wire in alternating direction, making the hose have very high working pressure. The cover is made from super high quality oil and weather resistant synthetic rubber, making the hose have longer service life.
Ideal For: Extremely high pressure, high impulse hydraulic places. Exceeds all the performance requirements for SAE 100 R9 / R10 / R12, EN856 R9 / R10 / R12, SAE 100 R12 and EN856 4SP. Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum based fluids.

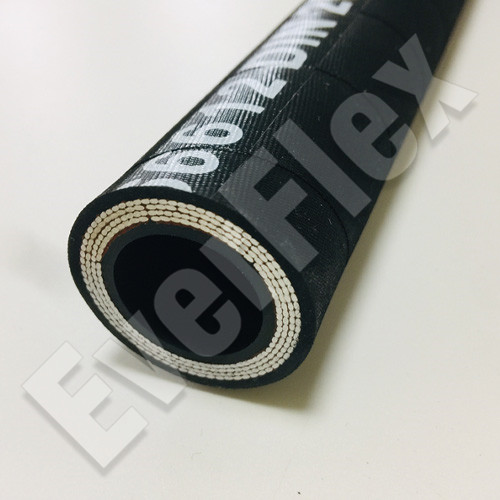

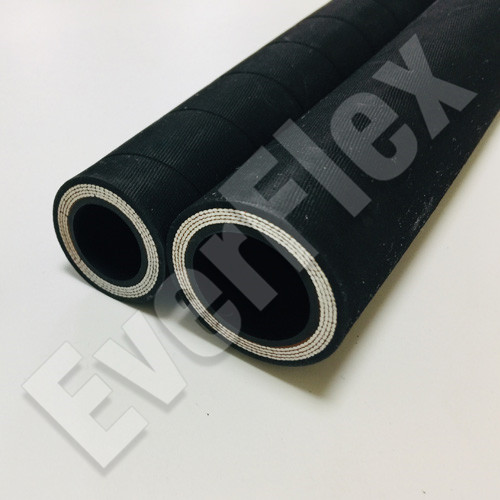

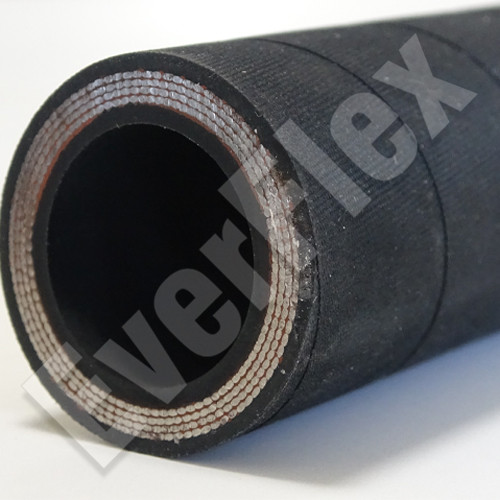

Structure:
Tube: Black and oil resident nitrile rubber
Reinforce: Four alternating layers of spiraled and high tensile steel wire.
Cover: Black and oil resistant synthetic (Nitrile).
Temperature Range: -40℉ to +250℉ (-40℃ to +121℃)

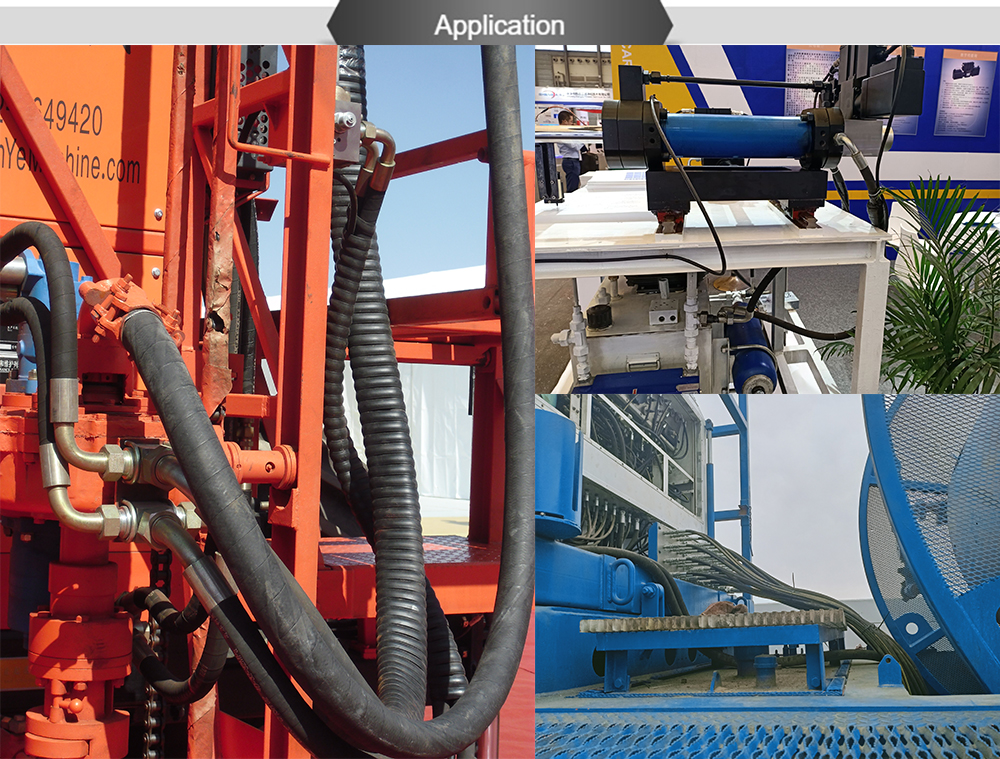

SAE 100 R12 Application:
Hydraulic system service with petroleum and water based fluids, for general industrial use.
SAE 100 R9/R10/R12 can be used for forklift, hydraulic engine, oilfield extraction machinery, mine/road/ construction machinery and so on.
Raw Material:
Importe LG NBR from South Korea.
Importe BELKTA steel wire with high tensile strength 2750Mpa from Belgium.
Good quality materials provide our hydraulic hose steady performance, good decentrality and excellent oil resistance.

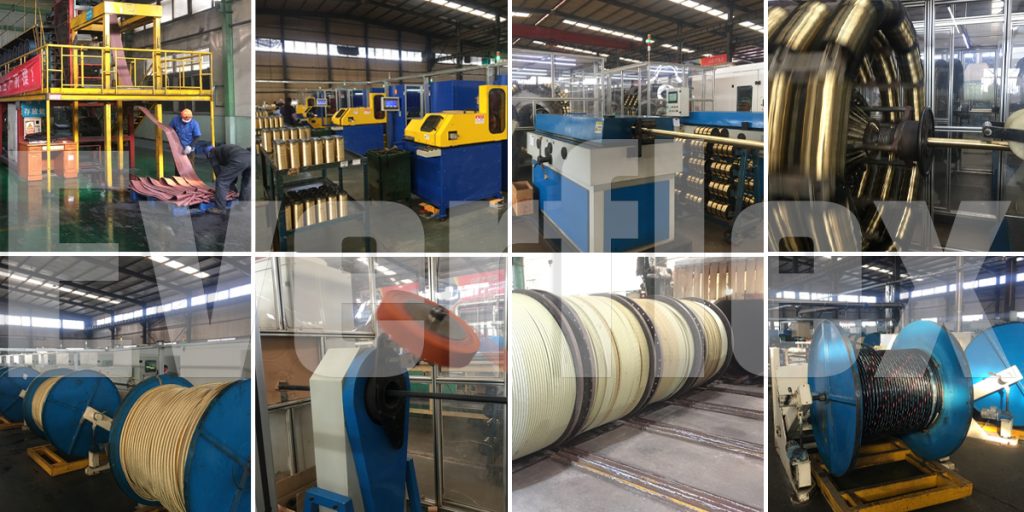

Factory Workshop:
Our factory introduce advanced technology and equipment to make the bets quality hydraulic hose.
Our bunching Machine is SEJIN MACHINE from Korea.The advantages of the machine are high accuracy ,high consistency,suspension difference < 70MM,the international standard is 120MM.
We use Mitsubishi electric control braiding machine .We use the machine can get high accuracy data collection, real-time braiding angle monitoring and correction.
Laboratory:
Our factory has strong quality control team and we set up advanced laboratory.
Before the mass production, we test each batch of raw material
After the production, we test each hose to guarantee a 100% qualification.
Each hose is tested 2 times on working pressure.
We do everything that possible to supply high quality goods to our customer.

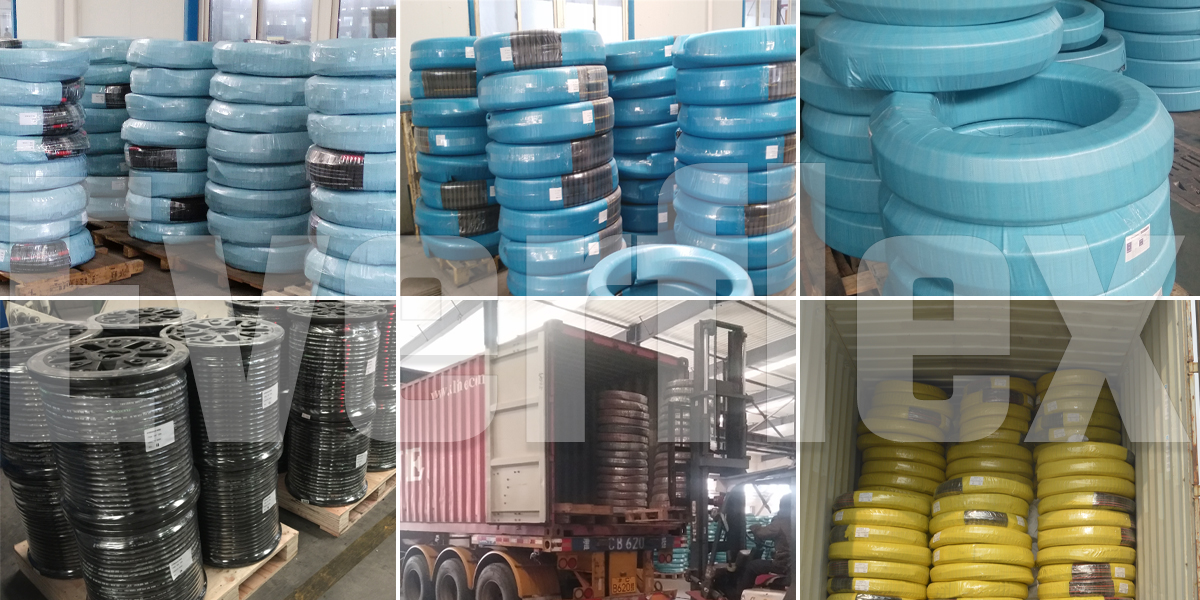

Packing:
After the production, we will pack the hydraulic hose. In general, the packing could be woven bag and plastic film. Special packing is available according to customers’ requirements.
