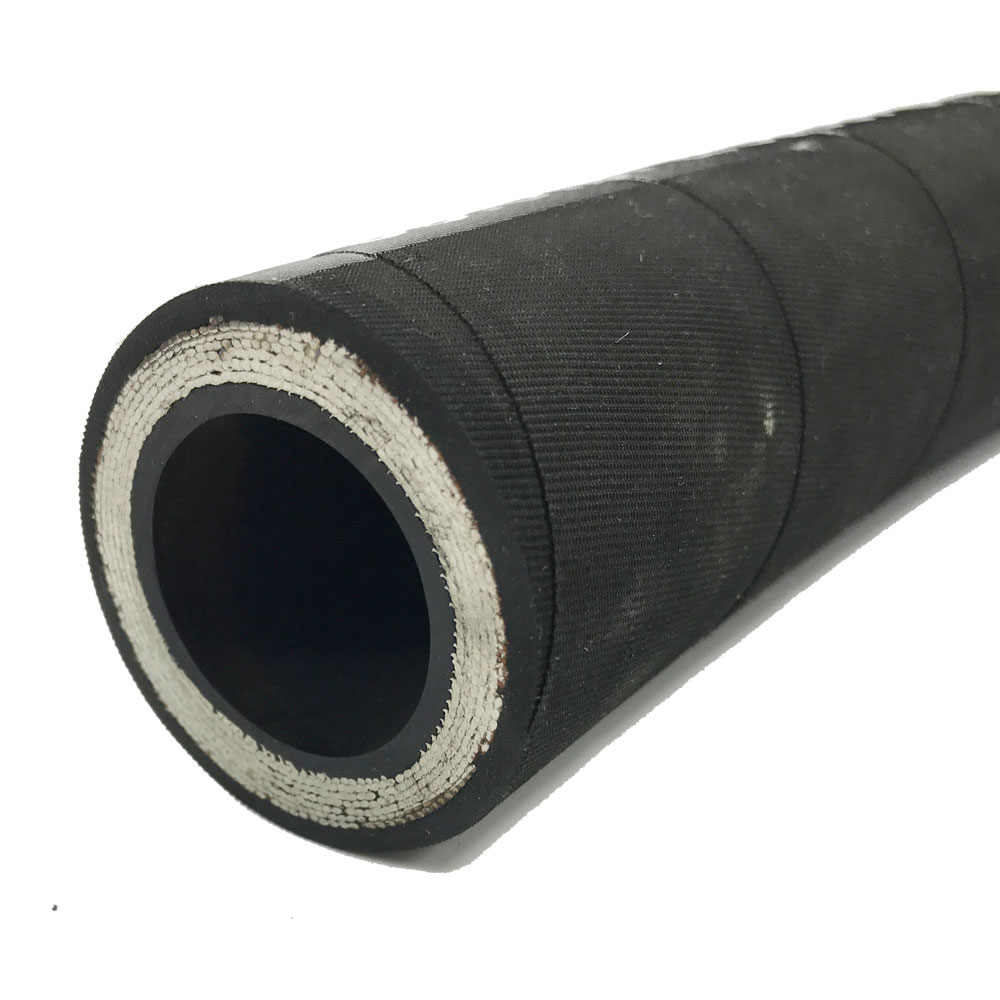

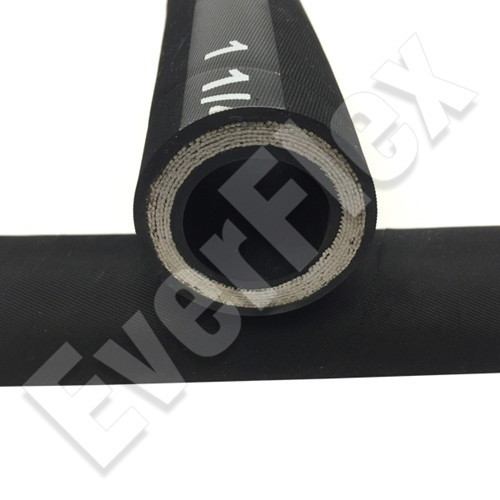

Heavy duty hydraulic hose Recommended For: Extremely high pressure, high mpulse hydraulic applications. This hose is designed to meet all requirements of SAE 100R13 R15 specifications and performance requirements of EN 856 4SH, EN856 4SP and EN856 R13, EN856 R15. Compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids.
Tube: Black, oil-resident synthetic rubber(Nitrile)
Reinforcement: Four(six for 1 1/4”, 1 1/2” and 2”) alternating layers of spiraled, high-tensile steel wire.
Cover: Black, oil-resistant synthetic(Nitrile).
Temperature Range: -40℉ to +250℉ (-40℃ to +121℃)
Product Application :

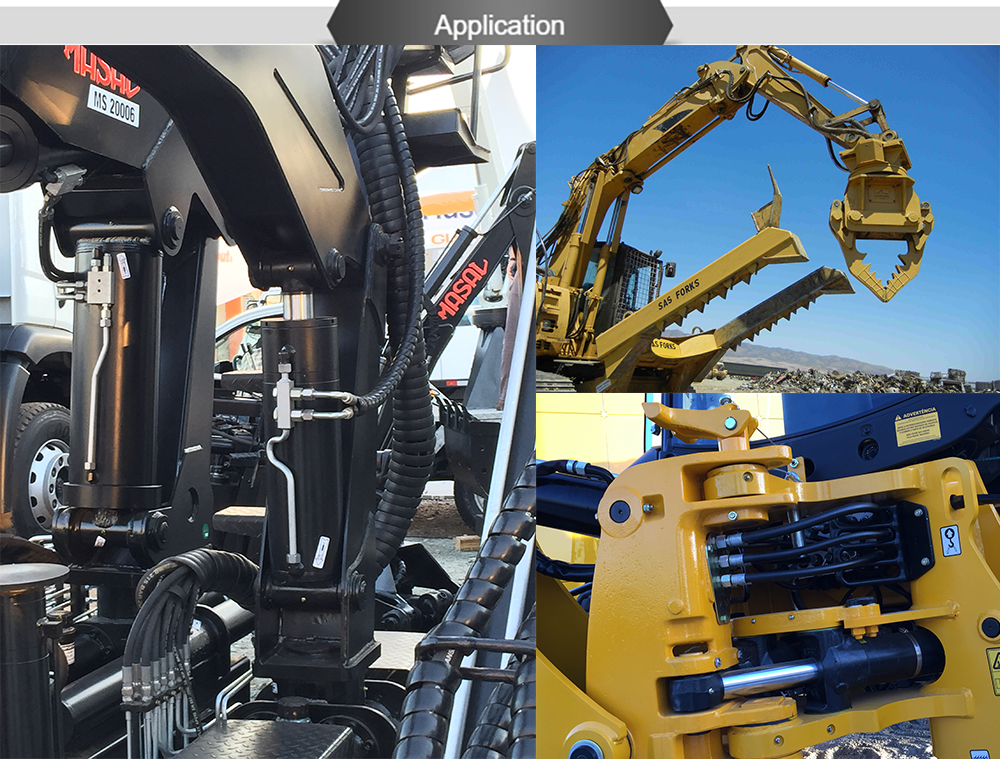

SAE 100 R13 can be used for forklift,hydraulic engine,oilfield extraction machinery, mine / road / construction machinery and so on.

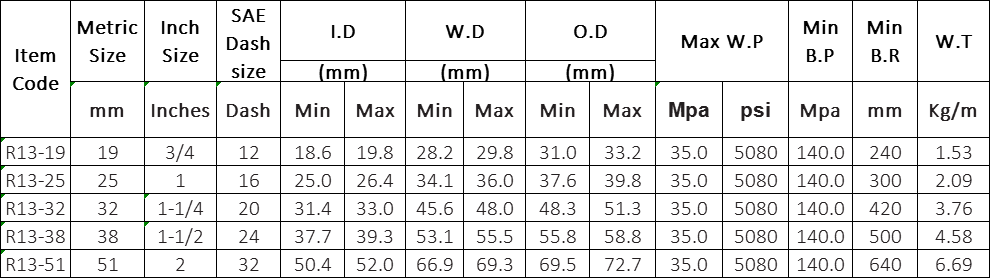

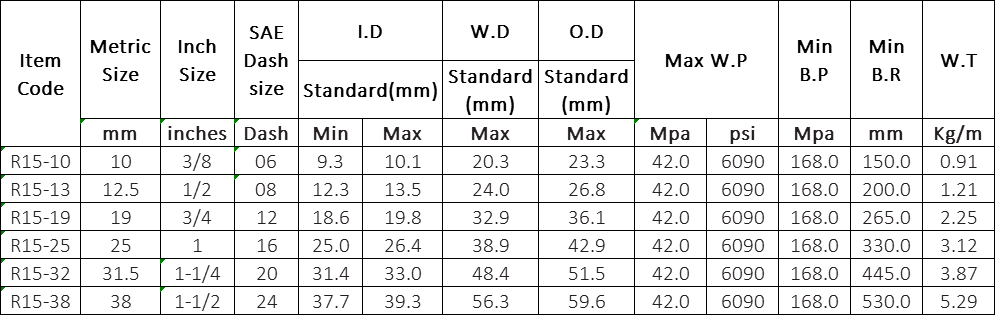

| SAE 100 R13 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Hose ID | Hose O.D. | Working Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | ||||||
| inch | mm | inch | mm | psi | MPa | psi | MPa | inch | mm | kg/m | lb/ft | |
| R13-10 | 3/8 | 9.5 | 0.94 | 23.8 | 10000 | 69 | 40000 | 276 | 5.98 | 152 | 1.1 | 0.74 |
| R13-13 | 1/2 | 12.7 | 1.06 | 27 | 7500 | 51.2 | 30000 | 207 | 7.87 | 200 | 1.35 | 0.91 |
| R13-16 | 5/8 | 15.9 | 1.09 | 27.7 | 5000 | 35 | 20000 | 140 | 8.66 | 220 | 1.55 | 1.04 |
| R13-19 | 3/4 | 19 | 1.26 | 32 | 5000 | 35 | 20000 | 140 | 9.45 | 240 | 1.65 | 1.11 |
| R13-25 | 1 | 25.4 | 1.54 | 39.2 | 5000 | 35 | 20000 | 140 | 11.81 | 300 | 2.25 | 1.51 |
| R13-32 | 1.25 | 31.8 | 1.96 | 49.8 | 5000 | 35 | 20000 | 140 | 16.54 | 420 | 3.6 | 2.42 |
| R13-38 | 1.5 | 38.1 | 2.26 | 57.3 | 5000 | 35 | 20000 | 140 | 19.69 | 500 | 4.75 | 3.19 |
| R13-51 | 2 | 50.8 | 2.83 | 71.9 | 5000 | 35 | 20000 | 140 | 24.8 | 630 | 6.9 | 4.64 |
| SAE 100 R 15 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Hose ID | Hose O.D. | Working Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | ||||||
| inch | mm | inch | mm | psi | MPa | psi | MPa | inch | mm | kg/m | lb/ft | |
| R15-10 | 3/8 | 9.5 | 0.92 | 23.3 | 6000 | 41.4 | 24000 | 165.5 | 6 | 153 | 0.77 | 0.52 |
| R15-13 | 1/2 | 12.7 | 1.06 | 26.8 | 6000 | 41.4 | 24000 | 165.5 | 8 | 203 | 0.92 | 0.62 |
| R15-19 | 3/4 | 19 | 1.42 | 36.1 | 6000 | 41.4 | 24000 | 165.5 | 10.5 | 267 | 1.5 | 1.01 |
| R15-25 | 1 | 25.4 | 1.69 | 42.9 | 6000 | 41.4 | 24000 | 165.5 | 13 | 330 | 2.1 | 1.41 |
| R15-32 | 1.25 | 31.8 | 2.02 | 51.5 | 6000 | 41.4 | 24000 | 165.5 | 17.5 | 445 | 3.6 | 2.42 |
| R15-38 | 1.5 | 38.1 | 2.35 | 59.6 | 6000 | 41.4 | 24000 | 165.5 | 21 | 533 | 5.1 | 3.43 |
| R13-51 | 2 | 50.8 | 2.83 | 71.9 | 5000 | 35 | 20000 | 140 | 24.8 | 630 | 6.9 | 4.64 |
Raw Material:
imported rubber materials LG NBR rubber from South Korea,
imported BELKTA steel wire with high tensile strength2750Mpa from Belgium.
Good quality materials make our hydraulic hose steady performance ,
good decentrality, excellent oil resistance.
