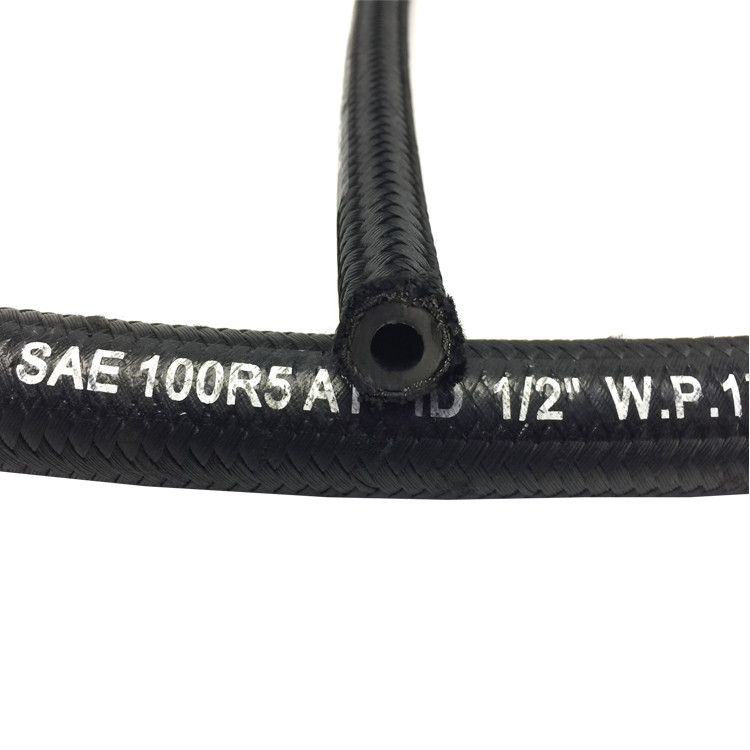

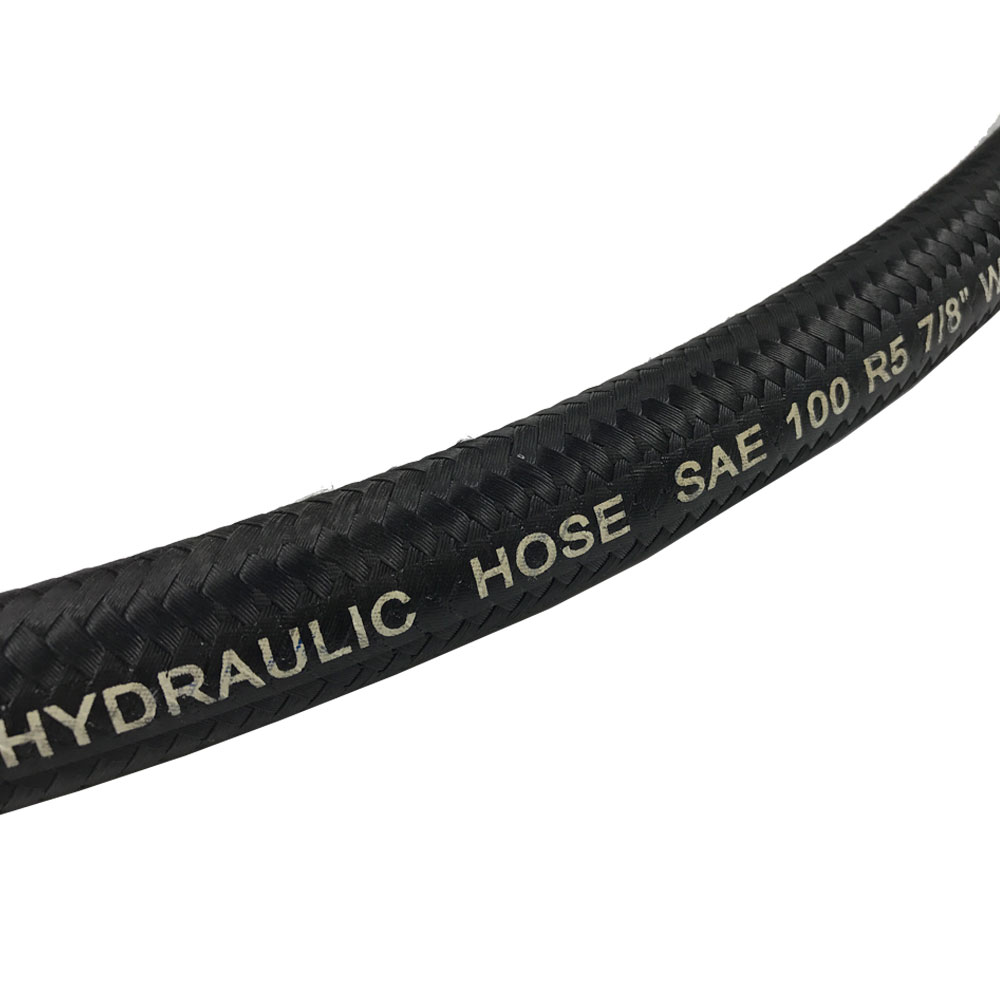

Wire Braided And Textile Covered Hydraulic Hose SAE100 R5

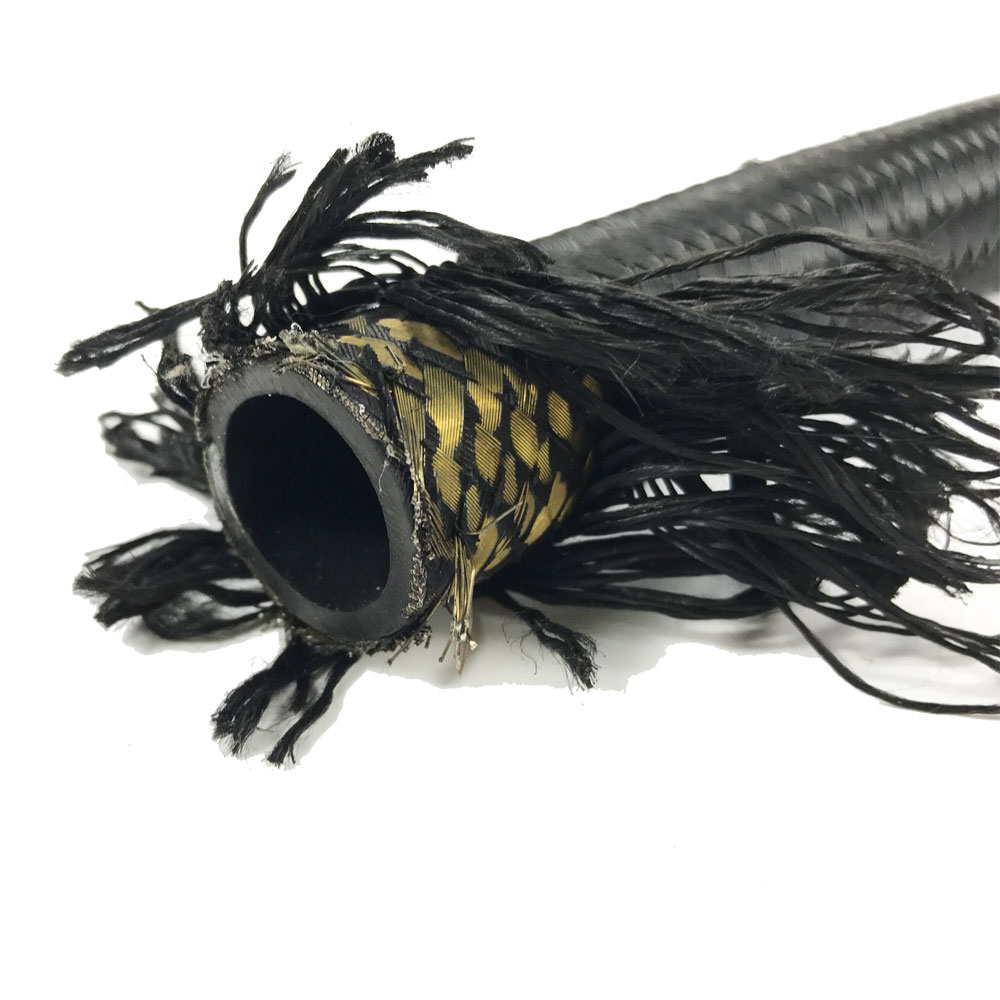

SAE 100 R5 steel wire reinforced hydraulic hose is suitable for impacted medium pressure hydraulic petroleum-based oils, lubricating oils, overheating lubricating oil and water & air piping, such as air brake, power steering, fuel filter, turbocharger and oil cylinder of heavy commercial vehicles. It is composed of three parts: tube, reinforcement and cover. The tube is made from black synthetic rubber, which is resistant to oils and heat. The reinforcement is made from one layer of single high tensile braided steel wire, making the hose have solid structure. The cover is made from braided fiber, making the hose resistant to weather and ozone.
Petroleum base hydraulic fluids resistant line. Meets or exceeds requirements of SAE 100 R5.
Black, synthetic rubber designed for resistant oil..
A single wire braid reinforcement
a fiber braided cover
-40℉ to +212℉ (-40℃ to +100℃)
Products Application :
Hydraulic hose SAE 100R5 can be used for forklift,hydraulic engine,oilfield extraction machinery, mine/ road/ construction machinery and so on.
imported rubber materials LG NBR rubber from South Korea,
imported BELKTA steel wire with high tensile strength2750Mpa from Belgium.
Good quality materials make our hydraulic hose steady performance ,
good decentrality, excellent oil resistance.

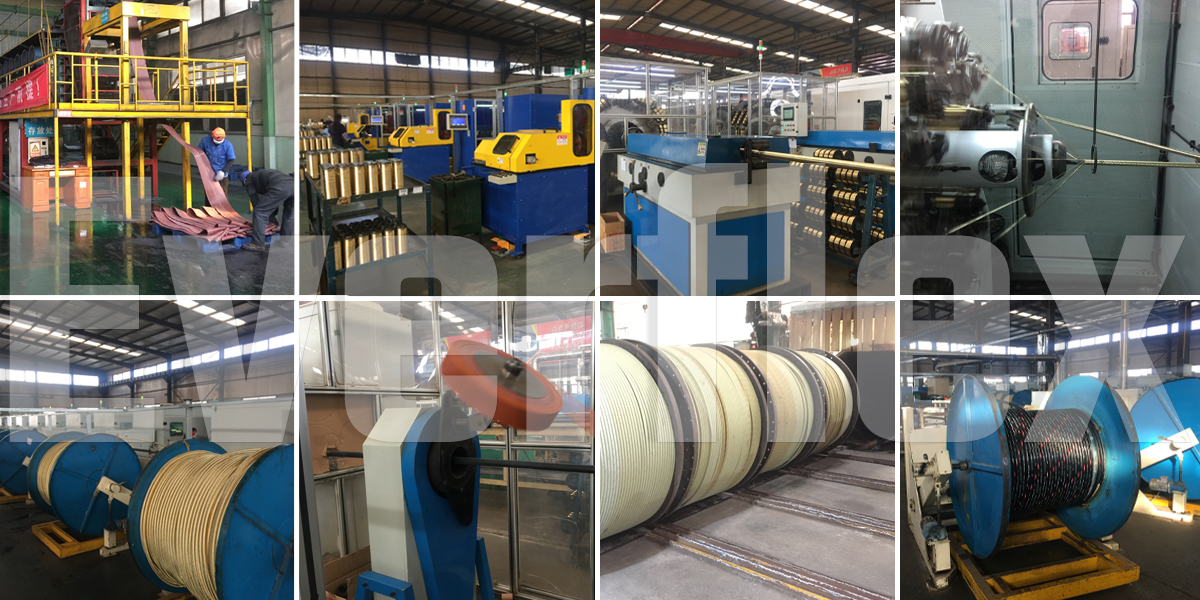

Our factory introduce advanced technology and equipment to make the bets quality hydraulic hose.
Our bunching Machine is SEJIN MACHINE from Korea.The advantages of the machine are high accuracy ,high consistency,suspension difference < 70MM,the international standard is 120MM.
We use Mitsubishi electric control braiding machine .We use the machine can get high accuracy data collection, real-time braiding angle monitoring and correction.
Our factory has strong quality control team, we set up advanced laboratory.
Before the mass production, we test each batch of raw material
After the production, we test each hose to guarantee a 100% qualification.
Each hose tested at 2 times of working pressure.
We do everything possible to supply good quality goods for our customer.
After finishing the Hydraulic Hose production, we will pack the hose. In general, the packing will
use woven bag and plastic film. Special packing is available according to customers’ requirements.
