SAE 100 R14 is suitable for: Air compressor discharge, hot oil and fluids in hot and greasy environments.
Tube: PTFE. See Hose Stock features.
Cover/ reinforce
One layer of stainless steel braid or seamless convoluted PTFE SS316.steel wire braid
Temperature Range: -65F to +450F (-54 ℃ to + 232℃)

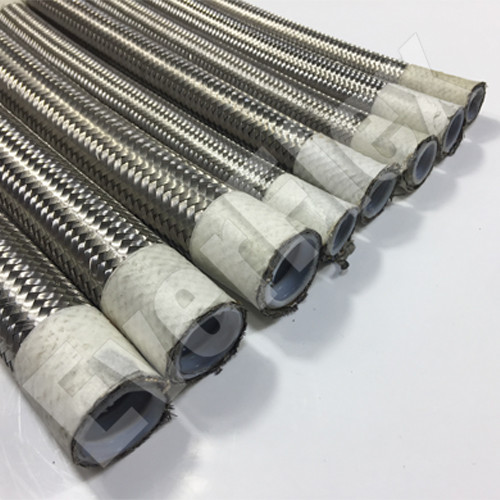

True Bore PFFE with Stainless Steel Braid—– Natural or Conductive (Static Dissipative)
Inner Smooth Bore Hose
Construction：
Tube:100% PTFE resin
Cover:single or double AISI 304 or 316 stainless steel wires braid
Application: hydraulic hose SAE 100 R14 is ideal for automotive, fluid handling, chemical transfer, paint, pharmaceutical, food & beverage, cosmetics and general-purpose applications.
Smooth Bore Hose
Inner Convoluted Hose
Construction:
Tube: 100% PTFE resin
Cover: single or double AISI 304 or 316 stainless steel wires braid
Application: It features excellent flexibility and kink resistance for superior performance in chemical, high temperature hydraulics, tight routings, high temperature media transfer and general-purpose applications.
Convoluted Hose
