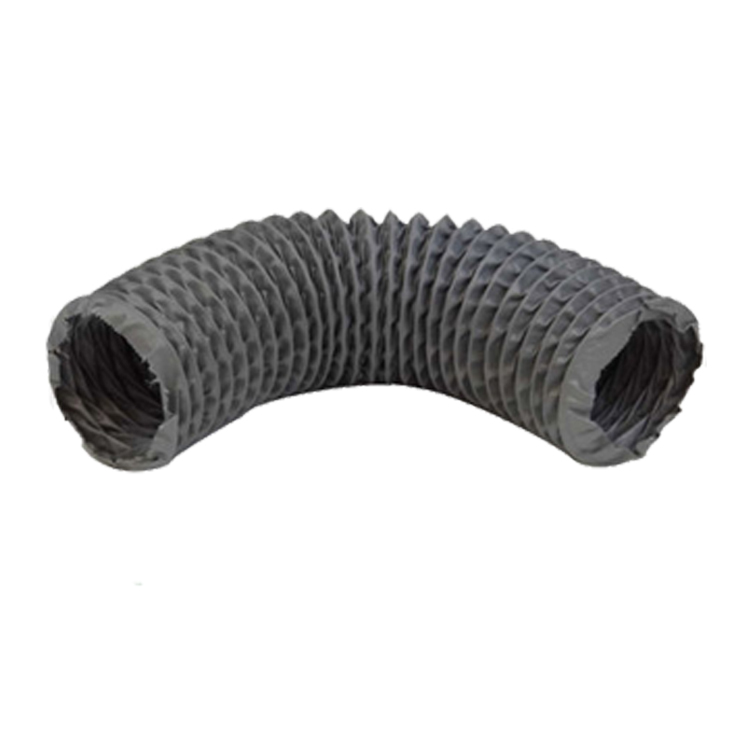

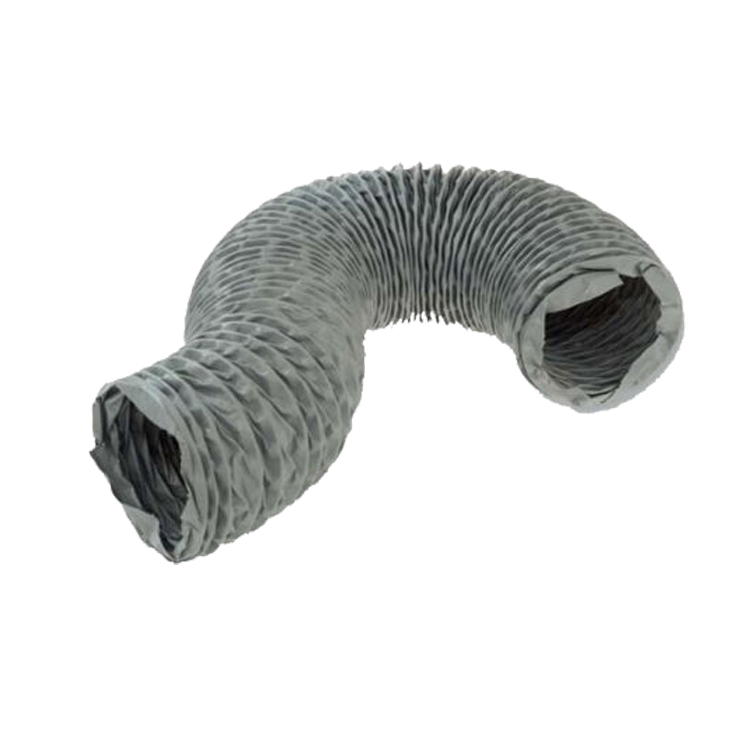

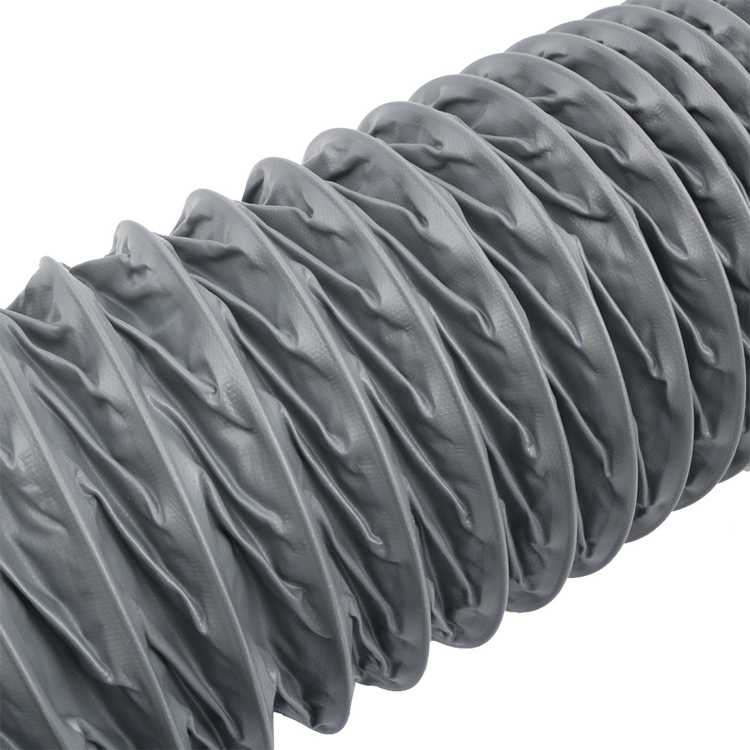

Nylon fabric duct hose
Nylon fabric ventilation duct hose is designed for ventilation of fumes, light weight dust, and air movement. This flexible ventilation hose is produced by PVC coated nylon polyester fabric with spring steel wire, it is extremely lightweight and flexible, flame retardant, vibration resistant, tearing resistant and high tensile strength.
The exhaust pipe is an air duct whose surface is covered with imported nylon cloth and supported by spiral steel wires inside. The nylon cloth is hot-pressed and bonded to the upper and lower layers of the steel wire to strengthen the adhesion. Force and tension, the max pressure is 1000 Pa, and the standard length is 10M. The Nylon cloth exhaust pipe is scalable, can be bent at will, connected freely and light in size.
Canvas Duct Structure:
Wall: pvc coated polyester fabric
Spiral: steel wire helix
Application of Fabric Duct Hose:
●As nylon fabric duct hose ideal for ventilation of fumes, dust extraction&collection and air movement.
●Air conditioning and ventilation of fumes,light duty dust extraction,and air movement.
●As a flexible connection between grilles diffusers,fans and other air movement units
●Suction of engine exhaust gas
●Exhaust gas technique, engine construction, engine warming, aircraft construction and military construction
●For flue gas extraction, blast furnace exhaust and engine test bench
Features:
●Vibration resistant
●Tearing resistant
●High tensile strength
●Minimum weight
●Highly flexible and compressible up to 10:1
●Very small bending radius
Working temperature: -20 to +80 degree centigrades
Specification:
Inner diameter 2″-16″
Length: 10m/roll
