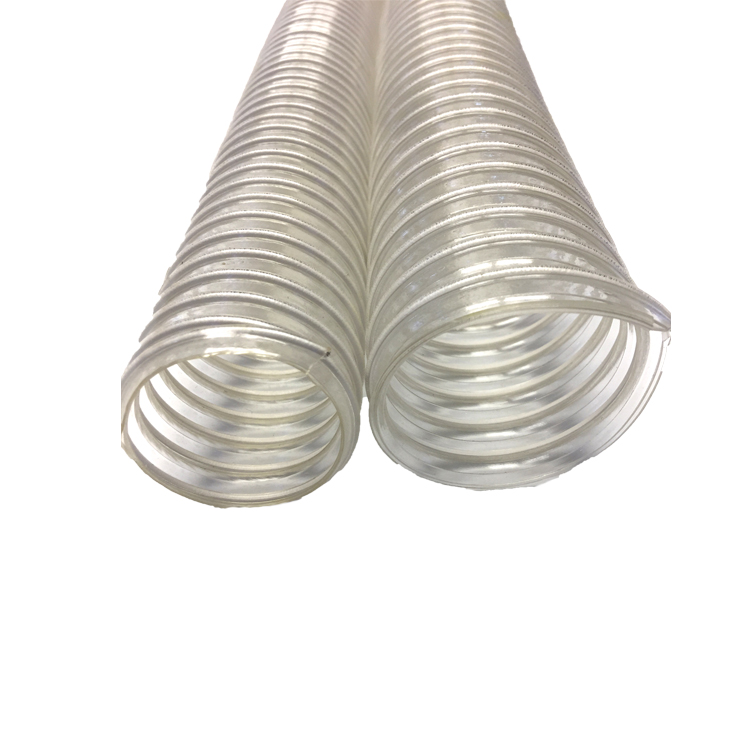

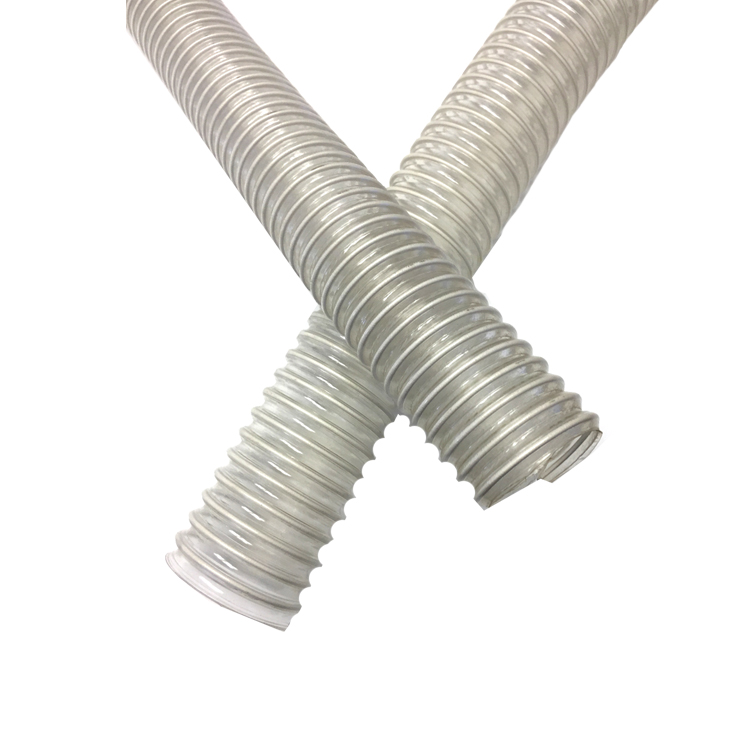

PVC duct hose is a clear PVC wall duct hose reinforced with a PVC coated spring steel wire helix for industrial air movement and fume control applications. This flex PVC duct hose provides great flexibility with tight bending feature. Besides, such PVC hose has good chemical and moisture resistance and the hose exhibits excellent compressible.
The duct hose is clear and transparent. Thus you can clearly see the mediums flow inside it. Steel wire makes the hose more strong and pressure resistant. The hose will not distort even an adult steps on it. Besides, steel wire also makes the hose more flexible. That means you can bend it at your willing without worrying about the block problem. What’s more, such vacuum hose has excellent wear resistance. Thus it’s ideal to transfer abrasives such as sand, grit and others.
Structure:
Wall: Soft PVC
Spiral: Steel wire PVC coated
Application:
Especially ideal for ventilation, industrial vacuum cleaner,
and granulate conveying systems.
As suction and transport hose suitable for below substance:
Gaseous medias such as vapors and smoke
Liquid medias
Small granules such as dusts, powders and etc.
Features:
● Highly flexible with low weight
●Extremely compressible
●Could be static electricity conductive by grounding the steel wire
● Smooth interior
● Highly transparent wall
●Small bending radius
●Comply to RoHS
Temperature: -20℃(-70℉) to 70℃(+150℉)
