Application：

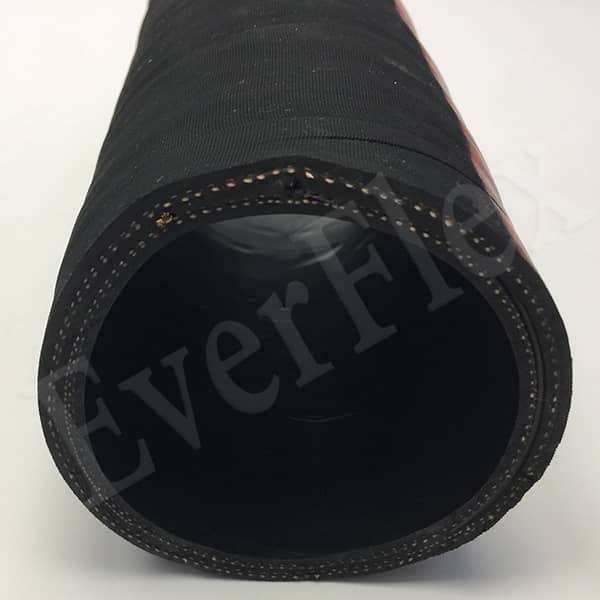

Softwall hose Designed for suction and delivery of petroleum products with aromatic content up to 50% for fuel connctor service.
Temperature：-20℃（-4℉)to+70℃（+158℉）
Tube：Black,smooth,NBR rubber.
Reinforcement：High strength synthetic cord (and helix wire)
Cover：Black,smooth(wrapped finish)synthetic rubber,weathering and ozone resistant.
Optional Request：Anti-static wire
oil suction and discharge hose
Item Code I.D. I.D. O.D W.P. W.P. B.P. B.P. Max.Length Max.Length inch mm mm bar psi bar psi m ft SDO13 1/2 12.7 21 10 150 30 450 60 200 SDO16 5/8 15.9 25 10 150 30 450 60 200 SDO19 3/4 19.1 28 10 150 30 450 60 200 SDO22 7/8 22.2 31 10 150 30 450 60 200 SDO25 1-1/2 25.4 34 10 150 30 450 60 200 SDO32 1-1/4 31.8 42 10 150 30 450 60 200 SDO38 1-1/2 38.1 48 10 150 30 450 60 200 SDO51 2 50.8 62 10 150 30 450 60 200 SDO64 2-1/2 63.5 76 10 150 30 450 60 200 SDO76 3 76.2 89 10 150 30 450 60 200 SDO89 3-1/2 88.9 103 10 150 30 450 60 200 SDO102 4 101.6 116 10 150 30 450 60 200 SDO127 5 127 142 10 150 30 450 30 100 SDO152 6 152.4 167 10 150 30 450 30 100 SDO203 8 203.2 219 10 150 30 450 30 100
oil discharge hose
Item Code I.D. I.D. O.D W.P. W.P. B.P. B.P. Max.Length Max.Length inch mm mm bar psi bar psi m ft ADC13 1/2 12.7 21 10 150 30 450 60 200 ADC16 5/8 15.9 25 10 150 30 450 60 200 ADC19 3/4 19.1 28 10 150 30 450 60 200 ADC22 7/8 22.2 31 10 150 30 450 60 200 ADC25 1 25.4 34 10 150 30 450 60 200 ADC32 1-1/4 31.8 42 10 150 30 450 60 200 ADC38 1-1/2 38.1 48 10 150 30 450 60 200 ADC51 2 50.8 62 10 150 30 450 60 200 ADC64 2-1/2 63.5 76 10 150 30 450 60 200 ADC76 3 76.2 89 10 150 30 450 60 200 ADC89 3-1/2 88.9 103 10 150 30 450 60 200 ADC102 4 101.6 116 10 150 30 450 60 200 ADC127 5 127 142 10 150 30 450 30 100 ADC152 6 152.4 167 10 150 30 450 30 100 ADC203 8 203.2 219 10 150 30 450 30 100
heavy duty oil suction and discharge hose
Item Code. I.D. I.D. O.D. O.D. W.P. W.P. B.P. B.P. Bending
RadiusBending
RadiusWeight Weight Length Length mm inch mm inch PSI bar PSI bar inch mm Lbs/ft kg/m ft m SDO32 32 1-1/4 47 1.85 225 15 650 45 10 256 0.84 1.26 196 60 SDO38 38 1-1/2 54 2.12 225 15 650 45 11 304 0.99 1.485 196 60 SDO51 51 2 64 2.51 225 15 650 45 16 408 1.29 1.935 196 60 SDO64 64 2-1/2 82 3.22 225 15 650 45 20 512 1.72 2.58 196 60 SDO76 76 3 95 3.74 225 15 650 45 24 608 1.99 2.985 196 60 SDO89 90 3-1/2 110 4.33 225 15 650 45 28 720 2.47 3.705 196 60 SDO102 102 4 124 4.88 225 15 650 45 32 816 2.84 4.26 196 60 SDO127 127 5 148 5.82 225 15 650 45 40 1016 6.5 9.75 196 60 SDO152 152 6 177 6.89 225 15 650 45 48 1216 7.6 11.4 196 60 SDO203 203 8 229 8.93 225 15 650 45 64 1624 13 19.5 196 60
Material:Good quality materials make our oil hose steady performance.
Production:Advanced technology and equipment to make the best quality rubber oil hose.
Laboratory:
Our factory has strong quality control team, we set up advanced laboratory.
Before the mass production, we test each batch of raw material.
After the production, we test each hose to guarantee a 100% qualification.
Each hose tested at 2 times of working pressure.
Packaging: After finishing the oil hose production, we will pack the hose.
In general, the packing will use woven bag and plastic film.
Special packing is available according to customers’ requirements.
Market & Exports: Our product has exported to over 30 countries,
including the United States, Britain, Brazil, Russia and so on.
Trade shows: we participate in overseas exhibitions every year.
