UHMWPE Chemical Hose

UHMWPE Chemical discharge hose 150 PSI

Application:
Chemical hose designed with ultra-high molecular weight polyethylene tube,excellent in handing a wide range of chemicals,petroleum products and oils.
Temperature range:-40℃(-40℉)to +120℃(+248℉）
Tube:White,smooth,Ultra High Molecular Weight Polyethylene (UHMWPE)
Reinforcement:High strength synthetic cord and helix wire.
Cover:Blue,smooth(wrapped finish),EPDM rubber, resistant to chemical,weathering and ozone

Item Code	I.D.	I.D.	O.D.	Work pressure	Work pressure	Burst Pressure	Burst Pressure	Max.Length	Max.Length
	inch	mm	mm	bar	psi	bar	pai	m	ft
QUI19	3/4"	19.1	31	10	150	40	600	60	200
QUI25	1"	25.4	37	10	150	40	600	60	200
QUI32	1-1/4"	31.8	44	10	150	40	600	60	200
QUI38	1-1/2"	38.1	51	10	150	40	600	60	200
QUI51	2"	50.8	67	10	150	40	600	60	200
QUI64	2-1/2"	63.5	79	10	150	40	600	60	200
QUI76	3"	76.2	92	10	150	40	600	60	200
QUI89	3-1/2"	88.9	105	10	150	40	600	60	200
QUI102	4"	101.6	118	10	150	40	600	60	200

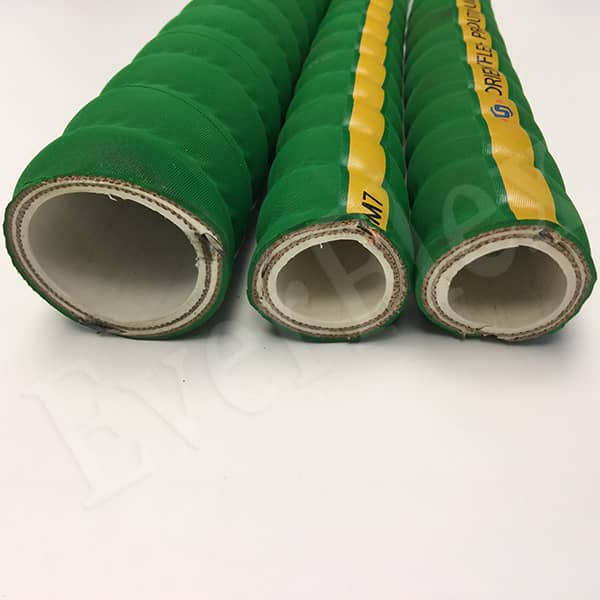

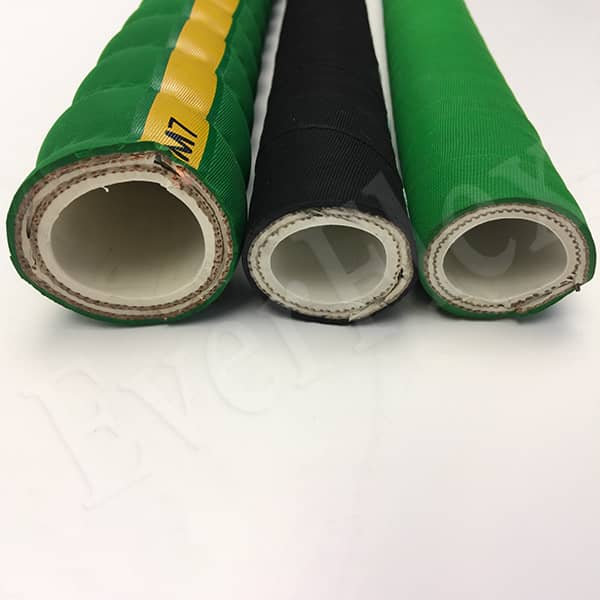

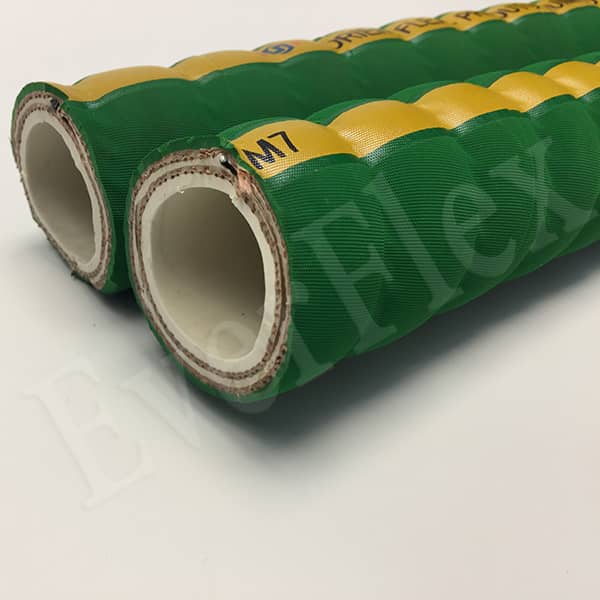

Corrugated UHMWPE Chemical Hose 200PSI

Application：
Acid Discharge
Acid Suction&Discharge
Chemical Transfer
Chemical spray hose
Features：
Abrasion and Ozone Resistant：The cover protects the body from stiffening and cracking caused by ozone and UV exposure.It also added abrasion resistance for extended hose life
Non-Kinking：The internal helical wire structure helps prevent kinking.
Multi-Ply Acid Discharge Hose：Designed to handle most of common acids and alkali solutions under pressure.
Multi-Ply Acid Suction Hose：This hose features a high-tensile textile cord with wire helix to prevent collapse under vacuum conditions.
Temperature Available: From -40℃ to 120℃
Structure：
Inner rubber:UHMWPE
Reinforcement layer:synthetic high tensile textile with helix steel wire,static ground.
Cover rubber:EPDM synthetic rubber
Safety factor:4:1
Color:Blue/Green

Item Code	I.D	I.D.	O.D.	O.D.	W.P.	W.P.	Vacuum Pressure	Bending Radius	Bending Radius	Weight	Length	Length
	mm	inch	mm	inch	PSI	bar	bar	inch	mm	kg/m	ft	m
CQUI25	25	1	36.8	1.45	200	14	0.8	4	100	0.77	200	60
CQUI32	32	1-1/4	43.2	1.7	200	14	0.8	5	130	0.93	200	60
CQUI38	38	1-1/2	49.5	1.95	200	14	0.8	6	150	1.06	200	60
CQUI51	50	2	63.4	2.5	200	14	0.8	8	200	1.59	200	60
CQUI64	64	2-1/2	76.1	3	200	14	0.8	10	250	1.93	200	60
CQUI76	76	3	92.4	3.64	200	14	0.8	12	300	3.05	200	60
CQUI102	102	4	120.6	4.75	200	14	0.8	16	400	4.64	200	60
CQUI152	152	6	175.8	6.91	200	14	0.8	30	750	8.49	200	60
CQUI203	203	8	240.3	9.46	200	14	0.8	40	1000	11.34	200	60

Material:Good quality materials make our chemical hose steady performance.

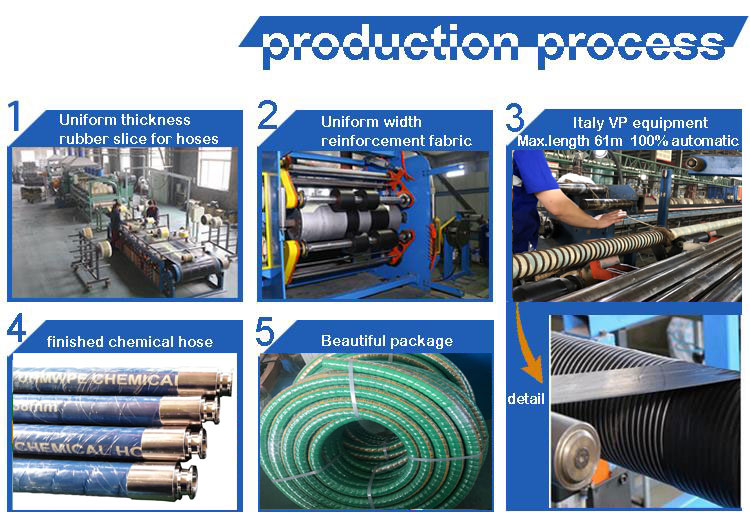

Production:Advanced technology and equipment to make the best quality rubber chemical hose.

Laboratory:

Our factory has strong quality control team, we set up advanced laboratory.
Before the mass production, we test each batch of raw material.
After the production, we test each hose to guarantee a 100% qualification.
Each hose tested at 2 times of working pressure.
Packaging: After finishing the chemical hose production, we will pack the hose.
                    In general, the packing will use woven bag and plastic film.
                    Special packing is available according to customers’ requirements.

Market & Exports: Our product has exported to over 30 countries,

                                including the United States, Britain, Brazil, Russia and so on.

Trade shows: we participate in overseas exhibitions every year.
