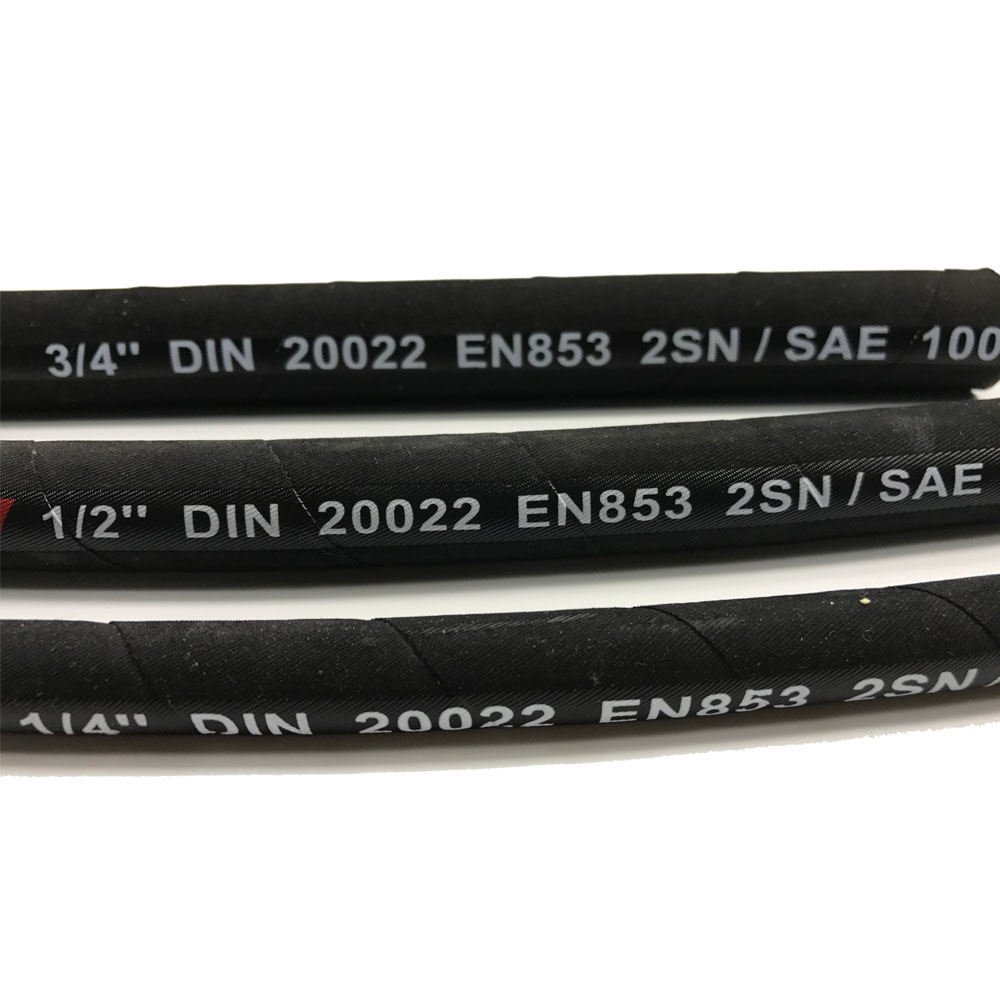

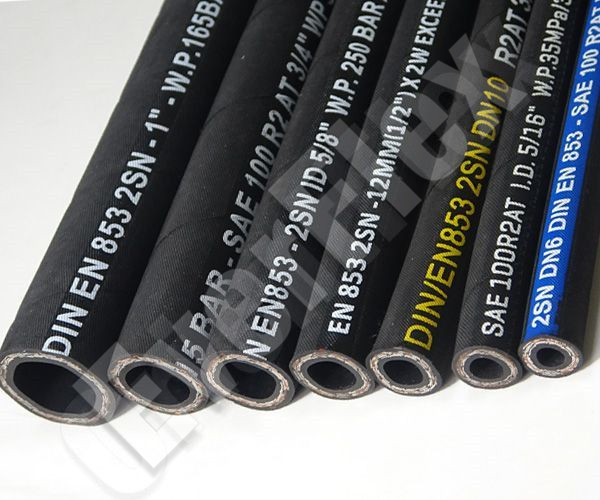

Recommended For:
High-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R2AT and SAE 100R2 Type S and performance requirements of EN853 2SN.

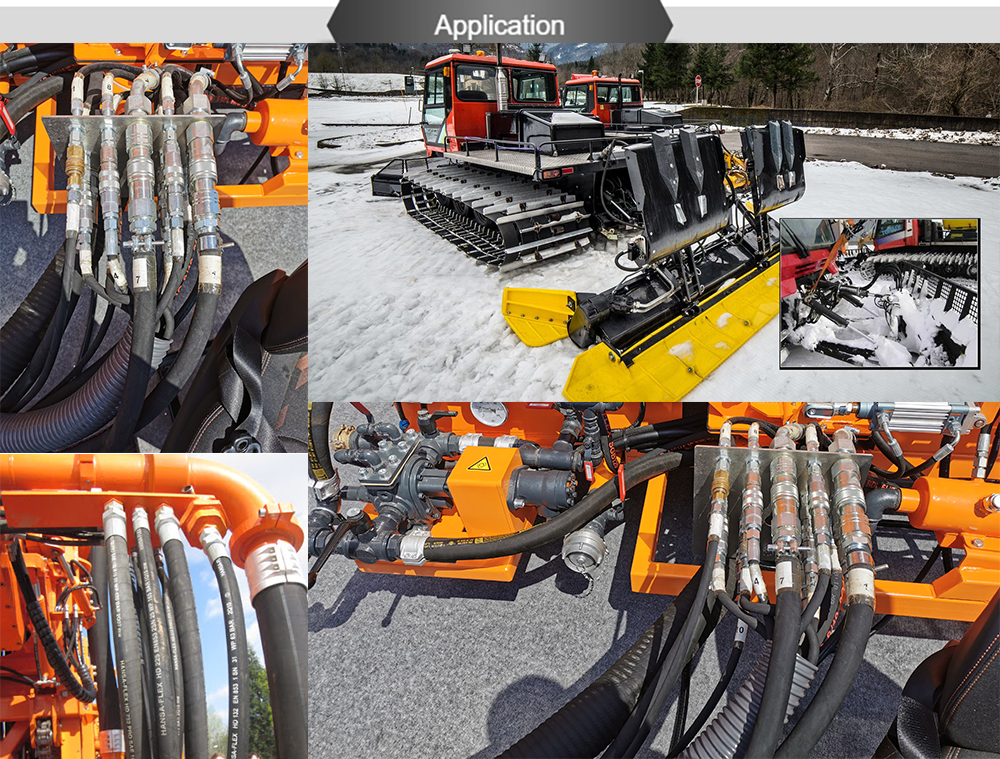

Application Fields:
For high pressure hydraulic systems in industry and agriculture.
Tube:Black,oil resistant,synthetic rubber.

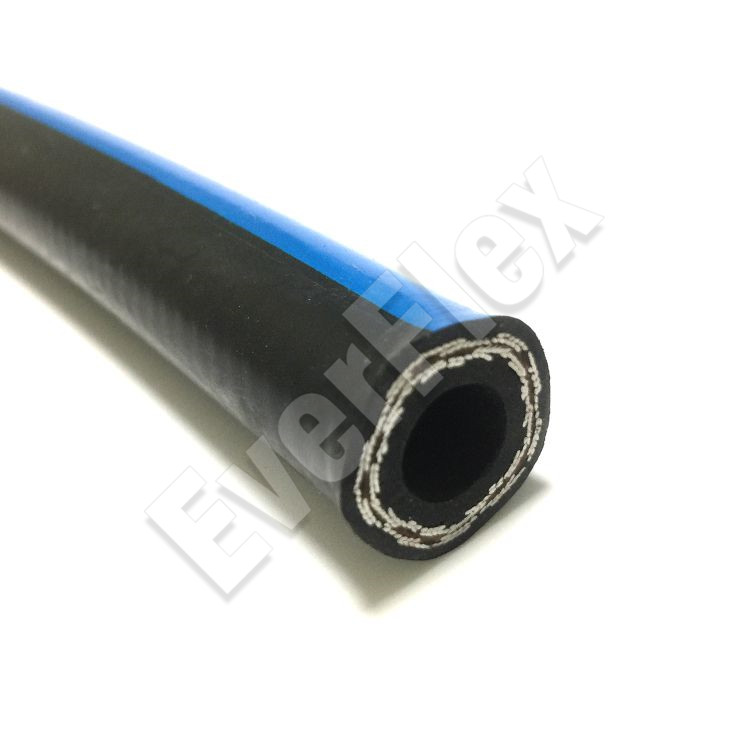

Reinforcement:
Two braids of high-tensile steel wire.
Cover:Black,oil,abrasion and weather resistant, thin synthetic rubber.
Temperature Range:
-40℉ to +250℉ (-40℃ to +121℃)

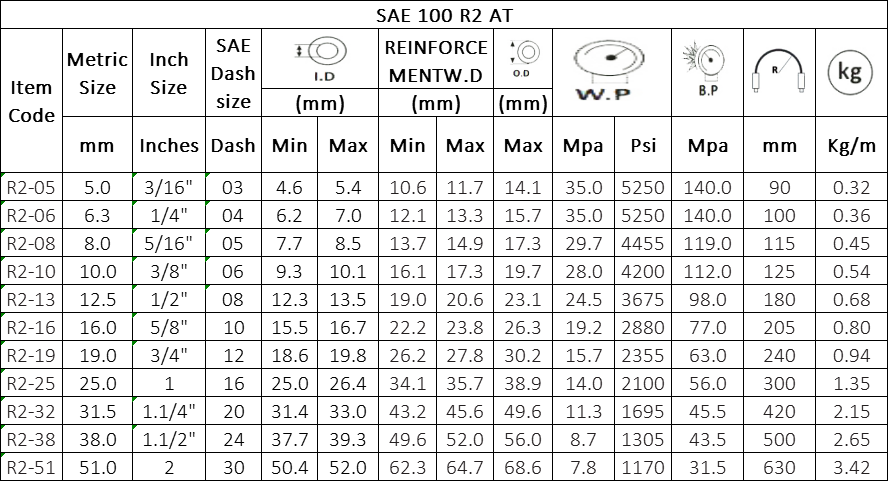

SAE 100 R2 Item Code Hose ID Hose O.D. Working Pressure Min. Burst Pressure Min. Bend Radius Weight Inch mm Inch mm psi MPa psi MPa Inch mm kg/m lb/ft R2-06 1/4 6.4 0.58 14.7 5075 35 20300 140 3.94 100 0.36 0.242 R2-08 5/16 7.9 0.64 16.3 4310 29.7 17255 119 4.53 115 0.45 0.302 R2-10 3/8 9.5 0.74 18.7 4060 28 16240 112 4.92 125 0.54 0.363 R2-13 1/2 12.7 0.86 21.8 3550 24.5 14210 98 7.09 180 0.68 0.457 R2-16 5/8 15.9 0.98 24.9 2785 19.2 11165 77 7.87 200 0.8 0.538 R2-19 3/4 19.1 1.14 29 2275 15.7 9135 63 9.45 240 0.94 0.632 R2-25 1 25.4 1.48 37.6 2030 14 8120 56 11.81 300 1.35 0.907 R2-32 1.25 31.8 1.87 47.5 1640 11.3 6600 45.5 16.54 420 2.15 1.445 R2-38 1.5 38.1 2.11 53.5 1265 8.7 6310 43.5 19.69 500 2.65 1.781 R2-51 2 50.8 2.62 66.5 1130 7.8 4570 31.5 24.8 630 3.42 2.298 1SN-51 3 76 3.46 88 290 2 1160 8 34.65 880 2.74 1.841

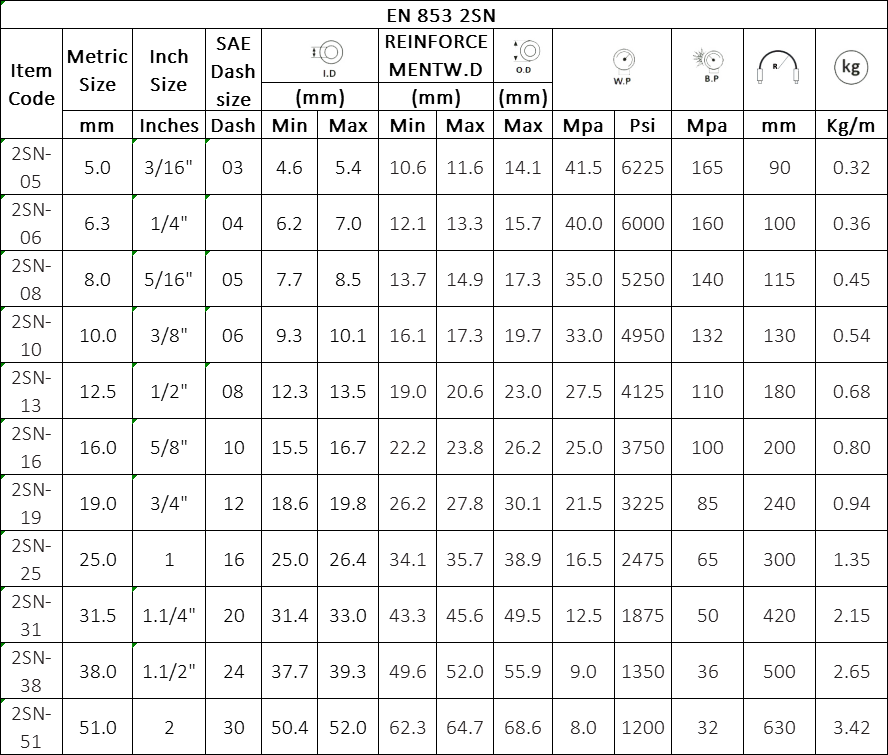

EN 853 2SN Item Code Hose ID Hose O.D. Working Pressure Min. Burst Pressure Min. Bend Radius Weight Inch mm Inch mm psi MPa psi MPa Inch mm kg/m lb/ft 2SN-06 0.25 6.4 0.58 14.7 5800 40 23200 160 3.94 100 0.36 0.242 2SN-08 0.3125 7.9 0.64 16.3 5075 35 20300 140 4.53 115 0.45 0.302 2SN-10 0.375 9.5 0.74 18.7 4800 33.1 19200 132.4 4.92 125 0.54 0.363 2SN-13 0.5 12.7 0.86 21.8 4000 27.6 16000 110.3 7.09 180 0.68 0.457 2SN-16 0.625 15.9 0.98 24.9 3625 25 14500 100 7.87 200 0.8 0.538 2SN-19 0.75 19.1 1.14 29 3120 21.5 12480 86.1 9.45 240 0.94 0.632 2SN-25 1 25.4 1.48 37.6 2400 16.5 9600 66.2 11.81 300 1.35 0.907 2SN-32 1.25 31.8 1.87 47.5 1810 12.5 7240 49.9 16.54 420 2.15 1.445 2SN-38 1.5 38.1 2.11 53.5 1300 9 5200 35.9 19.69 500 2.65 1.781 2SN-51 2 50.8 2.62 66.5 1175 8.1 4700 32.4 24.8 630 3.42 2.298 2SN-38 2.5 63.8 3.07 78 720 5 2880 19.9 29.92 760 3.78 2.54 2SN-51 3 76 3.56 90.5 580 4 2320 16 34.65 880 4 2.688
Raw Material:
imported rubber materials LG NBR rubber from South Korea,
imported BELKTA steel wire with high tensile strength2750Mpa from Belgium.
Good quality materials make our hydraulic hose steady performance ,
good decentrality, excellent oil resistance.
Factory Workshop:
Our factory introduce advanced technology and equipment to make the bets quality hydraulic hose.
Our bunching Machine is SEJIN MACHINE from Korea.The advantages of the machine are high accuracy ,high consistency,suspension difference < 70MM,the international standard is 120MM.
We use Mitsubishi electric control braiding machine .We use the machine can get high accuracy data collection, real-time braiding angle monitoring and correction.
Laboratory:
Our factory has strong quality control team, we set up advanced laboratory.
Before the mass production, we test each batch of raw material
After the production, we test each hose to guarantee a 100% qualification.
Each hose tested at 2 times of working pressure.
We do everything possible to supply good quality goods for our customer.
Packing:
After finishing the Hydraulic Hose production, we will pack the hose. In general, the packing will
use woven bag and plastic film. Special packing is available according to customers’ requirements.
