Recommended For: Low-pressure fiber braid hydraulic hoses. Meets or exceeds the requirements of SAE100 R3 R6AT.
Tube:Black,oil resistant,synthetic rubber.
Reinforcement: One or Two braids fiber layer
Cover:Black, oil,abrasion and weather resistant, thin synthetic rubber
Temperature Range: -40℉ to +250℉ (-40℃ to +121℃)

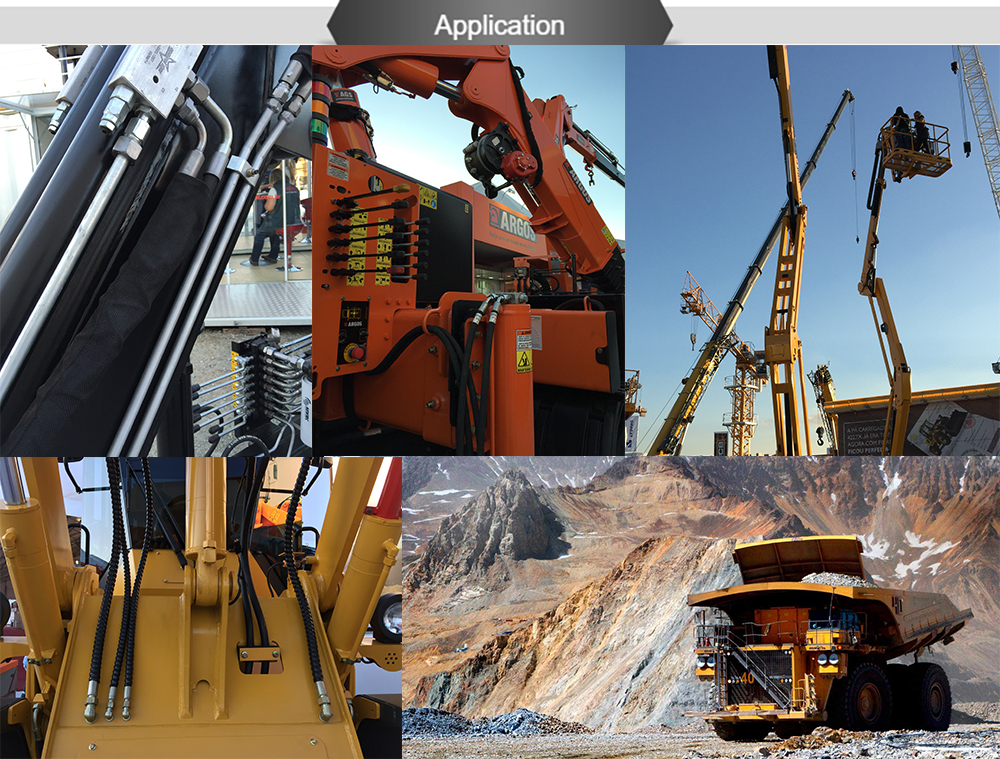

Products Application :
Hydraulic hose SAE 100R3 SAE 100R6 can be used for hydraulic oil delivering ,and some low oil machine.

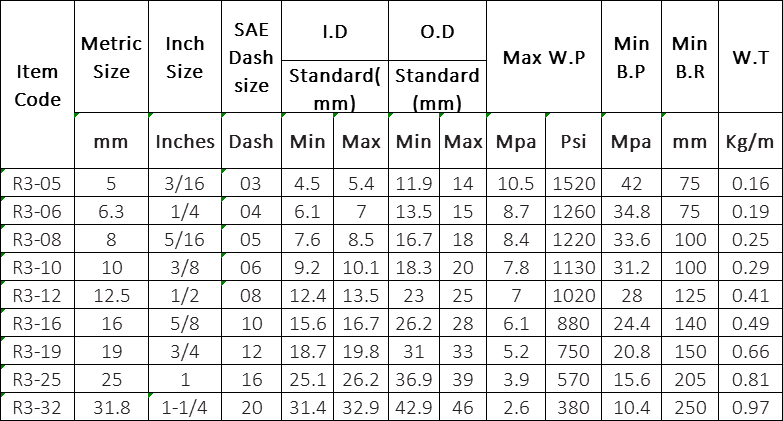

SAE 100R3 Item Code Hose I.D. Hose O.D. Working Pressure Burst Pressure Min.Bend Radius Weight mm inch min max Mpa psi MPa psi mm inch kg/m lb/ft R3-05 5 3/16 11.9 13.5 10.5 1522.5 42 6090 75 3 0.16 0.11 R3-06 6.3 1/4 13.5 15.1 8.7 1261.5 35 5075 75 3 0.18 0.12 R3-08 8 5/16 16.7 18.3 8.4 1218 33.5 4857.5 100 4 0.27 0.18 R3-10 10 3/8 18.3 19.8 7.8 1131 31.5 4567.5 100 4 0.31 0.21 R3-13 12.5 1/2 23 24.6 7 1015 28 4060 125 5 0.45 0.3 R3-16 16 5/8 26.2 27.8 6.1 884.5 24.5 3552.5 140 5.5 0.53 0.36 R3-19 19 3/4 31 32.5 5.2 754 21 3045 150 6 0.72 0.48 R3-25 25 1 36.9 39.3 3.9 565.5 15.7 2276.5 205 8 0.9 0.6 R3-32 31.5 1.1/4 42.9 46 2.6 377 10.5 1522.5 250 10 1.07 0.72

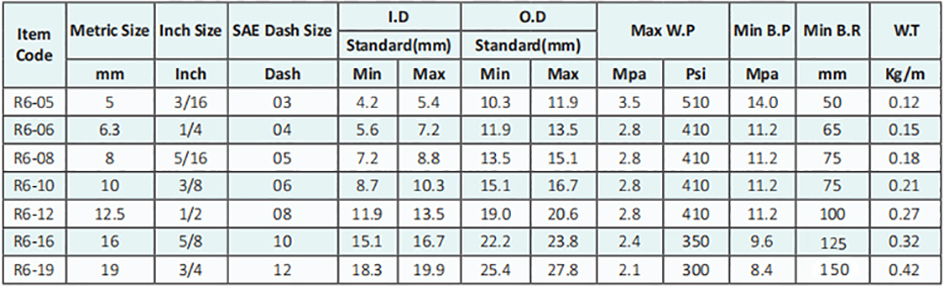

SAE 100 R6 Item Code Hose I.D. Hose O.D. Working Pressure Burst Pressure Min.Bend Radius Weight mm inch min max MPa psi MPa psi mm inch kg/m lb/ft R6-05 5 3/16 10.3 11.9 3.5 507.5 14 2030 50 2 0.1 0.07 R6-06 6.3 1/4 11.9 13.5 2.8 406 11.2 1625 65 2.6 0.13 0.09 R6-08 8 5/16 13.5 15.1 2.8 406 11.2 1625 75 3 0.15 0.1 R6-10 10 3/8 15.1 16.7 2.8 406 11.2 1625 75 3 0.18 0.12 R6-13 12.5 1/2 19 20.6 2.8 406 11.2 1625 100 4 0.26 0.17 R6-16 16 5/8 22.2 23.8 2.4 348 9.8 1420 125 5 0.31 0.21 R6-19 19 3/4 25.4 27.8 2.1 305 8.4 1220 150 6 0.4 0.27 R3-32 31.5 1.1/4 42.9 46 2.6 377 10.5 1522.5 250 10 1.07 0.72
